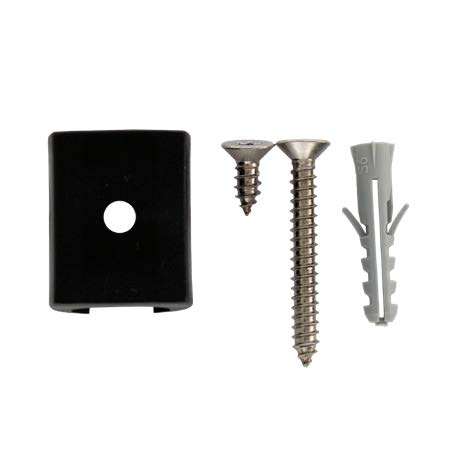

Wall bracket including screws and dowels.

Manufacturer item no.: 140246The DOL 10 is a simple temperature sensor. This sensor is well suited for use in environments that require a robust design and fast response time.The temperature sensor is used to measure the inside and outside temperature and has an accuracy of + 0.5 °C.The sensor has a temperature range of minus 40 to plus 60 °C and is protected according to IP67.The DOL 10 comes with a 1.5 meter cable. (Optional 5 meter cable, please inquire)TECHNICAL DATAelectricMeasuring range -40°C to +60°CAccuracy ±0.5°CEnvironmentAmbient temperature, operation and storage -40°C to +60°CProtection class IP 67sensor properties-40℃ 82.50kΩ 8.08V0°C 32.91kΩ 6.37V60°C 6.59kΩ 2.68V Illustration similar

Manufacturer item no.: 140303The DOL 10 is a simple outdoor temperature sensor. The sensor is well suited for use in environments where a robust design and a fast response time are required.The temperature sensor measures the indoor and outdoor temperature. The accuracy is + 0.5º C.The operating temperature of the sensor is between - 40º and + 60º C. It is IP67 protected.. (Optional version for water 140304 please ask)TECHNICAL DATAElectricalMeasuring range -40°C to +60°C Accuracy ±0.5 °CEnvironmentAmbient temperature, operation and storage -40°C to +60°C Protection class IP 67Sensor properties-40 °C 82.50 kΩ 8.08 V0 °C 32.91 kΩ 6.37 V60 °C 6.59 kΩ 2.68 VCable length 5 meters Illustration similar

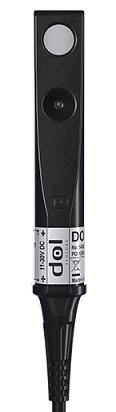

Manufacturer item no.: 140263 The DOL 104 is a high precision relative humidity sensor. The sensor has an analogue output with very low output resistance and full protection against short circuits and cable faults. The special sensor element and the integrated filter enable use in livestock stables with a constantly high level of humidity. A protective cap is also available so that the sensor does not have to be removed when cleaning the barn. Other models available on request:140279 DOL 104 humidity sensor 1-3V140273 DOL 104 humidity sensor 4-20mA140276 DOL 104 Humidity sensor 0.5-3V Rotem 8C TECHNICAL SPECIFICATIONS Measuring range 0 – 100% RH Accuracy 2% RH (40-85%), 3% RH (10-95%) at 0-40°C * Output signal 0.1V / % RH Supply voltage 11 – 30 V DC Supply current 12 mA no load 35 mA max load Load > 500Ω - < 10MΩ Recommended burden ≥ 100 kΩ Output current 20 mA (current limited) Output impedance < 1Ω Temperature, operation and storage - 40 °C - 60 °C IP classification IP 67 Cable 2 m. 3 x 22 AWG / 0.34 mm2 max. cable length/ 100 m 0.75 mm2 200 m 1.50 mm2    After direct exposure to water and condensation, a period of time with less than 80% relative humidity is required for a correct measurement.         Other variants available:    0-5V 0.05V / %RH 0-3V 0.03V / %RH Similar to illustration

Manufacturer item no.: 140275 The DOL 104 is a high precision relative humidity sensor. The sensor has an analogue output with very low output resistance and full protection against short circuits and cable faults. The special sensor element and the integrated filter enable use in livestock stables with a constantly high level of humidity. The sensor is controlled by a microprocessor and has a two-color light emitting diode (LED) to indicate operational status and to diagnose faults. A protective cap is also available so that the sensor does not have to be removed when cleaning the barn. However, this sensor is also suitable for other industrial applications and is easily adapted to all types of asset management systems.   TECHNICAL SPECIFICATIONS  Measurement range % RH 0 – 100 Accuracy % RH:0-3 V ± 3% RH (40–85 %) ± 4% RH (10-95 %) at 0-40 °C Output signal:0-3 V 0.03 V / % RH Time constant T63 20 s at 0.5 m/s air speed Supply voltage V DC 11 – 30 Current mA 12 mA no load 35 mA max. load Load Ω > 500 Ω - < 10 MΩ Recommended load kΩ ≥ 100 Output current mA 20 (current limited) Output impedance Ω < 1 Temperature, operation and storage °C -40 to -60C IP classification IP 67 Cable 2 m. 3 x 22 AWG / 0.34 mm2 max. cable length/ 100 m 0.75 mm2 200 m 1.50 mm2 * After direct exposure to water and condensation, a period of time with less than 80% relative humidity is required for a correct measurement. Other variants available: 0-10V 0.1V / %RH 0-5V 0.05V / %RH     Similar to illustration

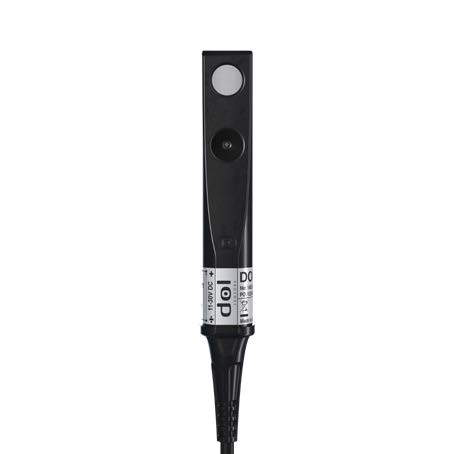

Manufacturer item no.: 140274 The DOL 104/140274 is a high precision relative humidity sensor. The sensor has an analogue output with very low output resistance and full protection against short circuits and cable faults. The special sensor element and the integrated filter enable use in livestock stables with a constantly high level of humidity. The sensor is controlled by a microprocessor and has a two-color light emitting diode (LED) to indicate operational status and to diagnose faults. A protective cap is also available so that the sensor does not have to be removed when cleaning the barn. However, this sensor is also suitable for other industrial applications and is easily adapted to all types of asset management systems. TECHNICAL SPECIFICATIONS   Measuring range 0 – 100% RH Accuracy 0-5 V ± 3 % RH (40–85 %) ± 4 % RH (10-95 %) bei 0-40 °C * Output signal 0-5 V 0,05 V / %rF  Supply voltage 11 – 30 V DC Supply current 12 mA no load 35 mA max load Load > 500Ω - < 10MΩ Recommended burden ≥ 100 kΩ Output current 20 mA (current limited) Output impedance < 1Ω Temperature, operation and storage - 40 °C - 60 °C IP classification IP 67 Cable 2 m. 3 x 22 AWG / 0.34 mm2 max. cable length/ 100 m 0.75 mm2 200 m 1.50 mm2 * After direct exposure to water and condensation, a period of time with less than 80% relative humidity is required for a correct measurement. Other variants available: 0-10V 0.1V / %RH  0-3V 0.03V / %RH   Similar to illustration

Manufacturer item no.: 140276 The DOL 104 is a high precision relative humidity sensor. The sensor has an analogue output with very low output resistance and full protection against short circuits and cable faults. The special sensor element and the integrated filter enable use in livestock stables with a constantly high level of humidity. The sensor is controlled by a microprocessor and has a two-color light emitting diode (LED) to indicate operational status and to diagnose faults. A protective cap is also available so that the sensor does not have to be removed when cleaning the barn. However, this sensor is also suitable for other industrial applications and is easily adapted to all types of asset management systems.   TECHNICAL SPECIFICATIONS  Measurement range % RH 0 – 100 Accuracy % RH:± 3% RH (40–85 %) ± 4% RH (10-95 %) at 0-40 °C Output signal: 0.03 V / % RH Time constant T63 20 s at 0.5 m/s air speed Supply voltage V DC 11 – 30 Current mA 12 mA no load 35 mA max. load Load Ω > 500 Ω - < 10 MΩ Recommended load kΩ ≥ 100 Output current mA 20 (current limited) Output impedance Ω < 1 Temperature, operation and storage °C -40 to -60C IP classification IP 67 Cable 2 m. 3 x 22 AWG / 0.34 mm2 max. cable length/ 100 m 0.75 mm2 200 m 1.50 mm2 * After direct exposure to water and condensation, a period of time with less than 80% relative humidity is required for a correct measurement. Similar to illustration

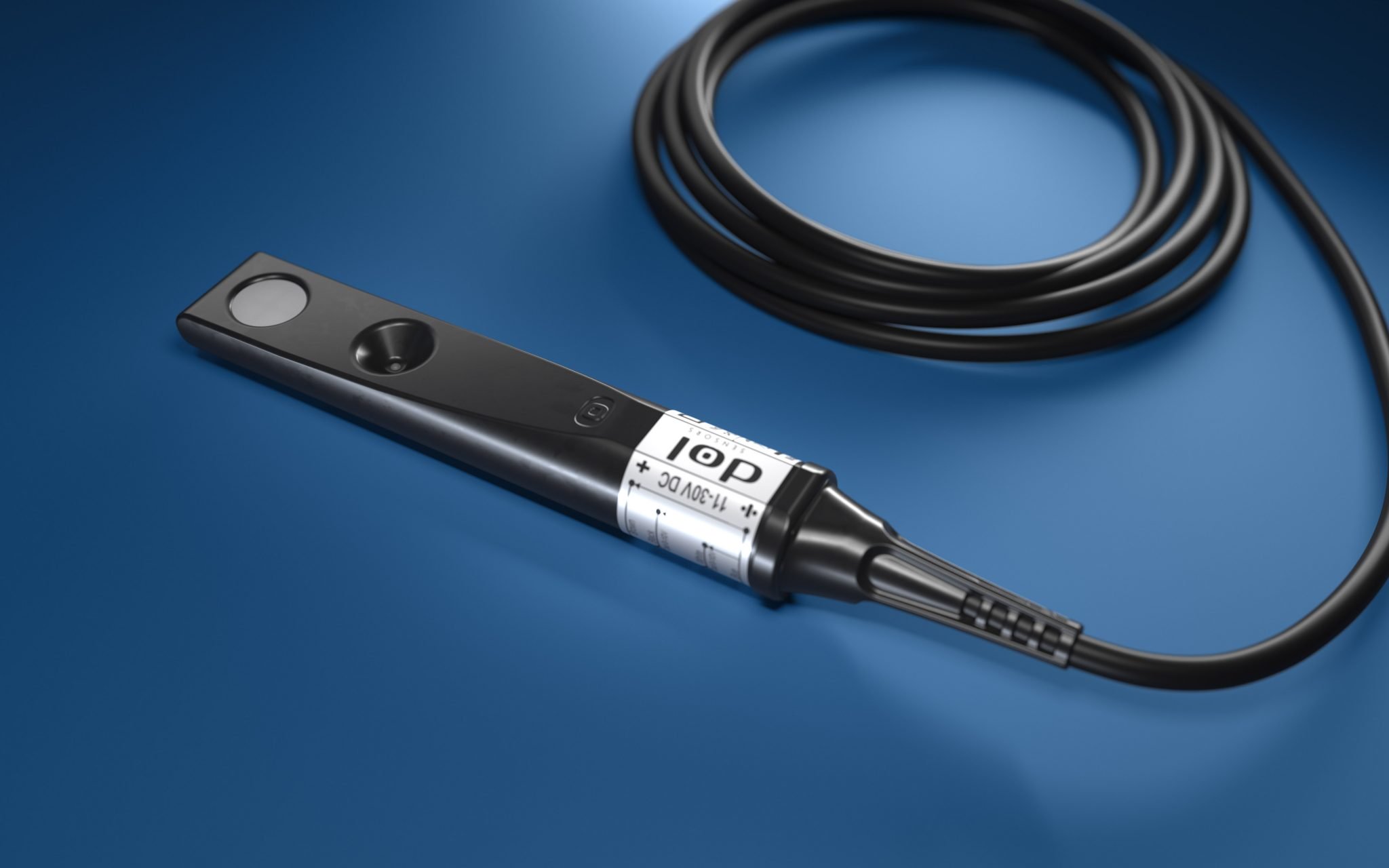

Manufacturer item no.: 140279 The DOL 104 is a high precision relative humidity sensor. The sensor has an analogue output with very low output resistance and full protection against short circuits and cable faults. The special sensor element and the integrated filter enable use in livestock stables with a constantly high level of humidity. The sensor is controlled by a microprocessor and has a two-color light emitting diode (LED) to indicate operational status and to diagnose faults. A protective cap is also available so that the sensor does not have to be removed when cleaning the barn. However, this sensor is also suitable for other industrial applications and is easily adapted to all types of asset management systems.   TECHNICAL SPECIFICATIONS  Measurement range % RH 0 – 100 Accuracy % RH: ± 3% RH (40–85 %) ± 4% RH (10-95 %) at 0-40 °C Output signal: 0.02 V / % RH Time constant T63 20 s at 0.5 m/s air speed Supply voltage V DC 11 – 30 Current mA 12 mA no load 35 mA max. load Load Ω > 500 Ω - < 10 MΩ Recommended load kΩ ≥ 100 Output current mA 20 (current limited) Output impedance Ω < 1 Temperature, operation and storage °C -40 to -60C IP classification IP 67 Cable 2 m. 3 x 22 AWG / 0.34 mm2 max. cable length/ 100 m 0.75 mm2 200 m 1.50 mm2 * After direct exposure to water and condensation, a period of time with less than 80% relative humidity is required for a correct measurement. Similar to illustration

Manufacturer item no.: 140273 The DOL 104 is a high precision relative humidity sensor. The sensor has an analogue output with very low output resistance and full protection against short circuits and cable faults. The special sensor element and the integrated filter enable use in livestock stables with a constantly high level of humidity. The sensor is controlled by a microprocessor and has a two-color light emitting diode (LED) to indicate operational status and to diagnose faults. A protective cap is also available so that the sensor does not have to be removed when cleaning the barn. However, this sensor is also suitable for other industrial applications and is easily adapted to all types of asset management systems.   TECHNICAL SPECIFICATIONS  Measurement range % RH 0 – 100 Accuracy % RH:2% RH (40–85 %) ± 3% RH (10-95 %) at 0-40 °C Output signal:0,16 mA / % RH Time constant T63 20 s at 0.5 m/s air speed Supply voltage V DC 11 – 30 Current mA 12 mA no load 35 mA max. load Temperature, operation and storage °C -40 to -60C IP classification IP 67 Cable 2 m. 3 x 22 AWG / 0.34 mm2 max. cable length/ 100 m 0.75 mm2 200 m 1.50 mm2 * After direct exposure to water and condensation, a period of time with less than 80% relative humidity is required for a correct measurement. Similar to illustration

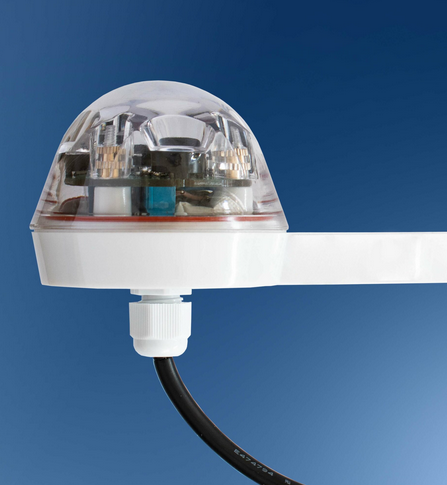

Manufacturer item number: 140308 DOL 111 is an optical rain detector. It has built-in optical probes for rain detection and comes with a 30-meter cable for easy installation. To ensure automatic closing of inlets in case of rain for example in cattle stables, DOL 111 rain sensor can be connected to a climate computer. DOL 111 rain detector can give a signal when it rains over or below 6.35 mm/hour (1/4”/hour). The rain sensor can be adjusted to stop detection 30 sec. to 5 min. after last drop. The sensor can be used in temperatures between minus 40 and plus 60 degrees Celsius. The rain detector is made of UV-resistant polycarbonate, UV-stable ABS, stainless steel, and has a silicone O-ring to protect the circuit board from rain. The sensor can also be used for other detection purposes. DOL 111 is designed to override cycle programs, stopping the system during rainfall, and keeping it off for a while after rain has fallen. Thus, it can be used with irrigation controllers for stopping sprinklers at the field e.g. Irrigation will resume once the sensor dries out or it rains below 6.35 mm/hour. Technical data:     Supply voltage 10-15 VDC / 15 mA     Output signal relay NO 1A 24 VDC     Sensitivity medium: 6.35 mm/hour     Stops detection 30s to 5mins after the last drop     Cable 30m (4 x 22AWG / 0.34mm)     weight 1500 gr Illustration similar

Manufacturer item no.: 140382 DOL 112-PT100 is a simple cost-effective temperature sensor. The sensor is a robust sensor with the high quality known from other dol-sensors’ sensor solutions. Thus, DOL 112-PT100 is well suited for use in environments where a sturdy design is required. The temperature sensor can operate in temperatures between minus 40 and plus 100 oC and can be used for measuring both inside and outside temperatures. DOL 112-PT100 is IP 68 protected, which means that it is dust tight and has total protection against water ingress, up to and including complete submersion below one meter and for more than 30 minutes. The sensor has an accuracy of +0.5 oC and comes with a 2-wire 1.4-meter ø5 mm cable. TECHNICAL DATAelectricMeasuring range -40°C to +100°CAccuracy ±0.5°CTolerance class B, F0.3Time constant T63 5 min. at 0.5 m/s air speedEnvironmentAmbient temperature, operation and storage -40°C to +100°CProtection class IP 68sensor properties-40℃ 84.27Ω0°C 100Ω60℃ 123.24Ωsensor dataTwo-core cable, length 1.40 mSensor Ø14, length 75mm Illustration similar

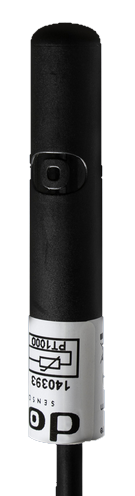

Manufacturer item no.: 140393 DOL 112-PT1000 is a simple cost-effective temperature sensor. The sensor is a robust sensor with the high quality known from other dol-sensors’ sensor solutions. Thus, DOL 112-PT1000 is well suited for use in environments where a sturdy design is required. The temperature sensor can operate in temperatures between minus 40 and plus 100 oC and can be used for measuring both inside and outside temperatures. DOL 112-PT1000 is IP 68 protected, which means that it is dust tight and has total protection against water ingress, up to and including complete submersion below one meter and for more than 30 minutes. The sensor has an accuracy of +0.5 oC and comes with a 2-wire 1.4-meter ø5 mm cable. TECHNICAL DATAelectricMeasuring range -40°C to +100°CAccuracy ±0.5°CTolerance class B, F0.3Time constant T63 5 min. at 0.5 m/s air speedEnvironmentAmbient temperature, operation and storage -40°C to +100°CProtection class IP 68sensor properties-40℃ 842.74Ω0°C 1000Ω60℃ 1232.42Ωsensor dataTwo-core cable, length 1.40 mSensor Ø14, length 75mm

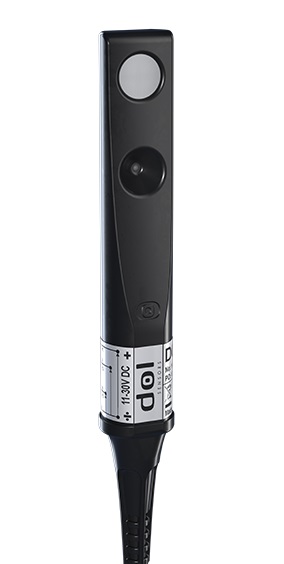

Manufacturer item no.: 140256 DOL 114 is a high-precision sensor for measuring relative humidity and temperature. The sensor was developed for use in livestock farming, but it is suitable for numerous industrial purposes. The sensor has two analogue outputs with very low output resistance and full protection against short circuits and cable faults. The special sensor element and the integrated filter enable use in livestock stables with a constantly high level of humidity. Depending on requirements, the sensor can be equipped with an integrated termination socket or a cable and with a specially adapted specification range. The sensor is controlled by a microprocessor and has a two-color LED diode for displaying operating status and fault diagnosis. The sensor is available with an extinguished diode on request. T ECHNICAL SPECIFICATIONS Measuring range: Humidity: 0 – 100% RH 17 – 100% RH* Temperature: - 40°C – 60°C 0 - 60°C Accuracy : Humidity: +/-3% RH (40-85%) +/- 4% RH (10-95%) at 0-40°C Temperature: +10°C - 40°C:± 0.6°C;- 30°C - 60°C: ±1.5°C Output signal: Humidity: 0.05V/%RH Temperature: 0.05V/°C; 0°C at 2V Time constant T63: 20 s at 0.5 m/s air speed 6 min. at 0.5 m/s air speed Electrical connection: 11 – 30 V DC Current: 12mA no load / 35mA max load Load: > 500Ω - < 10MΩ Recommended load: ≥ 100 kΩ Output current: 20 mA per output (current limit) Output Impedance: <1Ω Operating and ambient temperature, storage: - 40 °C - 60 °C IP classification: IP 67 Cable: 2m. 4 x 22AWG / 0.34mm2 Maximum cable length 100 m at 0.75 mm2 200 m at 1.50 mm2 Illustration similar

Manufacturer item no.: 140252 DOL 114 is a high-precision sensor for measuring relative humidity and temperature. The sensor was developed for use in livestock farming, but it is suitable for numerous industrial purposes. The sensor has two analogue outputs with very low output resistance and full protection against short circuits and cable faults. The special sensor element and the integrated filter enable use in livestock stables with a constantly high level of humidity. Depending on requirements, the sensor can be equipped with an integrated termination socket or a cable and with a specially adapted specification range. The sensor is controlled by a microprocessor and has a two-color LED diode for displaying operating status and fault diagnosis. The sensor is available with an extinguished diode on request.   Other variants available on request:    140260 DOL 114 humidity & temp. sensor 0-60°C    140253 DOL 114 Humidity & temp. sensor 5m cable    140254 DOL 114 humidity sensor including plug 0-10V    140282 DOL 114 RH & temp. sensor 0.5-3V red TECHNICAL SPECIFICATIONS Measuring range: Humidity: 0 – 100% RH 17 – 100% RH* Temperature: - 40°C – 60°C 0 - 60°C Accuracy : Humidity: ± 2% RH (40-85%) ± 3% RH (10-95%) at 40°C Temperature: +10°C - 40°C:± 0.5°C - 30°C - 60°C: ±1.5°C Output signal: Humidity: 0.1V/%RH Temperature: 0.1V/°C; 0°C at 4V Time constant T63: 20 s at 0.5 m/s air speed 6 min at 0.5 m/s air speed Electrical connection: 11 – 30 V DC Current: 12mA no load / 55mA max load Load: > 500Ω - < 10MΩ Recommended load: ≥ 100 kΩ Output current: 20 mA per output (current limit) Output Impedance: <1Ω Operating and ambient temperature, storage: - 40 °C - 60 °C IP classification: IP 67 Cable: 2m. 4 x 22AWG / 0.34mm2 Maximum cable length 100 m at 0.75 mm2 200 m at 1.50 mm2 Illustration similar

Manufacturer item no.: 140258 DOL 114 is a high-precision sensor for simultaneous measurement of relative humidity and temperature. It is used in livestock stables, but is also suitable for numerous industrial purposes. With the plug-in solution, the sensor can be removed and removed during cleaning. disinfection of the house. This increases the lifespan of the sensor. The DOL 114 comes with a protective cap. TECHNICAL SPECIFICATIONS Measuring range: Humidity: 0-100% RH Temperature:- 40℃-60℃ Humidity: 17-100% RH* Temperature: 0-60°C* Accuracy: Humidity: 2% RH (40-85%) ± 3% RH (10-95%) at 0-40°C Temperature: +10 °C - 40 °C: ± 0.5 °C ; - 30ºC – 60ºC: ± 1.5ºC  Output signal: Humidity: 0.1V/%RH Temperature: 0.1V/°C; 0°C at 4V Time constant T63: 20 s at 0.5 m/s Air speed :6 min at 0.5 m/s air speed Electrical connection: 11 – 30 V DC Current: 12mA no load / 55mA max load Load: > 500Ω - < 10MΩ Recommended load: ≥ 100 kΩ Output current: 20 mA per output (current limit) Output Impedance: <1Ω Operating and ambient temperature, storage: - 40 °C - 60 °C IP classification: IP 67 Cable with M12 connector Maximum cable length 100 m at 0.75 mm2 200 m at 1.50 mm2

Manufacturer item no.: 140262 DOL 114 is a high-precision sensor for measuring relative humidity and temperature. The sensor was developed for use in livestock farming, but it is suitable for numerous industrial purposes. The sensor has two 4 - 20 mA analogue outputs with very low output resistance and full protection against short circuits and cable faults. The special sensor element and the integrated filter enable use in livestock stables with a constantly high level of humidity. Depending on requirements, the sensor can be equipped with an integrated connection socket or a cable. The sensor is controlled by a microprocessor and has a two-color LED diode for displaying operating status and fault diagnosis. TECHNICAL SPECIFICATIONS Measuring range: Humidity: 0-100% RH Temperature: -40℃ - 60℃ Accuracy : Humidity: +/-2% RH (40-85%) ; +/- 3% RH (10-95%) at 0-40°C Temperature: +10 °C - 40 °C: ± 0.5 °C; -30℃-60℃: ±1.5℃  Output signal: Humidity: 0.16mA/%RH 0.16mA/°C; Temperature: 0°C at 10.4mA Time constant T63: 20 s at 0.5 m/s Air speed: 6 min at 0.5 m/s air speed Common electrical connection: 11 – 30 V DC Current: 55mA Load: 490 – 1 kΩ at 24 V DC electrical connection Recommended load: 500 Ω Output current: 20 mA per output (current limit) Output Impedance: <1Ω Operating and ambient temperature, storage -40 °C - 60 °C IP classification: IP 67 Cable: 2m. 4 x 22AWG / 0.34mm2 Maximum cable length: 100 m at 0.75 mm2 200 m at 1.50 mm2 Illustration similar

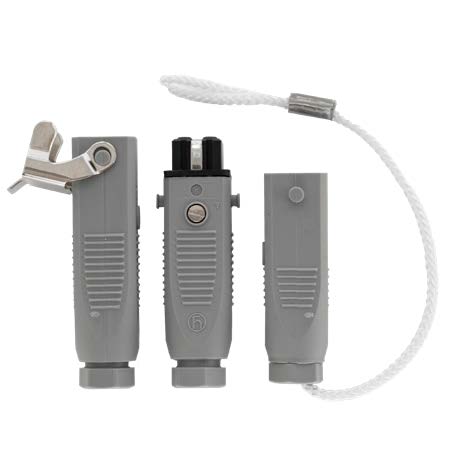

Manufacturer item no.: 140292Plug connection for removing the sensors during cleaning work.A blind cap closes the plug connection during cleaning.Suitable for DOL 16/104/114 Illustration similar

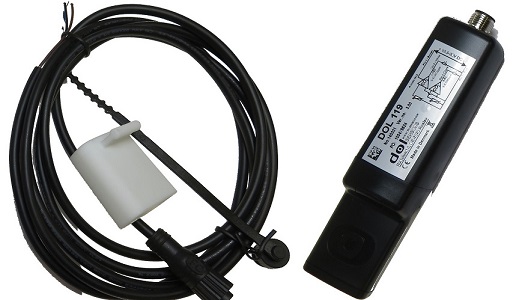

Manufacturer item no.: 140330For measuring the CO2 content in the air. Supplied with M12 connector and sealing plug and protective cap for DOL 119. DOL 119/ 140330 is a sensor for measuring the prevailing level of carbon dioxide/CO2. The sensor is used for climate monitoring via the CO2 content of the barn air. The measurement range of the sensor is based partly on monitoring the comfort zone of the animals and partly on monitoring possible error conditions in direct combustion houses. The sensor has two analogue outputs, with 0-10V power and 0-5V power respectively. Both are with low output impedance and full protection against short circuits and cable faults. The sensor is protected by a stable housing and its placement behind a carefully selected filter. The sensor is equipped with a cable and a protective cap so that it is not damaged during washing and disinfection work. The sensor must be installed in the middle of the barn building. TECHNICAL SPECIFICATIONS   Exit: Measuring range (output 1) 0 - 10 VDC Measuring range (output 2) 0 - 5 VDC Limited output current per port 20 mA Output impedance <1Ω Recommended load impedance >100 kΩ Max. cable length @ 0.75mm2 100 m Max. cable length @ 1.50mm2 200 m Load impedance 0.5 – 10000kΩ CO2 – Output 1:  Measuring range 0-10000ppm Output resolution 0.001V/ppm CO2 Accuracy 400 – 10000ppm 50ppm + 5% of reading ppm Temperature stability (0-50°C) + 2.5 ppm/oC Time constant: T63 2 minutes at 0.5 m/s air velocity CO2 – Output 2:  Measuring range 0 - 5000 ppm Output resolution 0.001V/ppm CO2 Accuracy 400 – 10000ppm 50ppm + 5% of reading ppm Temperature stability + 2.5 ppm/oC Time constant T63 2 minutes at 0.5 m/s air speed General: Power supply: 13.5 - 30 VDC Supply Current: No Load 8mA, Max Load 55mA Temperature, operation: CO2: CO2 valid 0 - +50 oC Temperature, operation: -40 - +60 oC Temperature, storage: -40 - +70 oC IP protection class: IP67 (DIN 40050-9) NEMA 1, 3, 4, 6 Cable Length: 2m Cable conductor size: 4 x 0.34 (4 x AWG22) mm2 Illustration similar

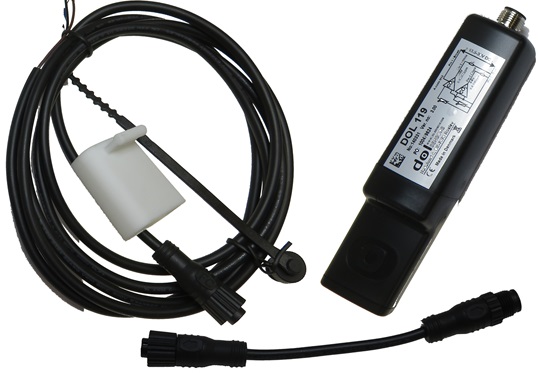

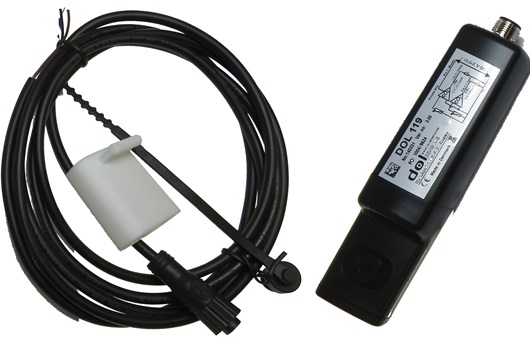

Manufacturer item no.: 140331 For measuring the CO2 content in the air. Supplied with M12 connector and sealing plug and protective cap for DOL 119. DOL 119 is a sensor for measuring the prevailing level of carbon dioxide/CO2. The sensor is used for climate monitoring via the CO2 content of the barn air. The measurement range of the sensor is based partly on monitoring the comfort zone of the animals and partly on monitoring possible error conditions in direct combustion houses. The sensor has two analogue outputs, with 0-10V power and 0-5V power respectively. Both are with low output impedance and full protection against short circuits and cable faults. The sensor is protected by a stable housing and its placement behind a carefully selected filter. The sensor is equipped with a cable and a protective cap so that it is not damaged during washing and disinfection work. The sensor must be installed in the middle of the barn building. TECHNICAL SPECIFICATIONS  Exit: Measuring range (output 1) 0 - 10 VDC Measuring range (output 2) 0 - 5 VDC Limited output current per port 20 mA Output impedance <1Ω Recommended load impedance >100 kΩ Max. cable length @ 0.75mm2 100 m Max. cable length @ 1.50mm2 200 m Load impedance 0.5 – 10000kΩ CO2 – Output 1: Measuring range 0-10000ppm Output resolution 0.001V/ppm CO2 Accuracy 400 – 10000ppm 50ppm + 5% of reading ppm Temperature stability (0-50°C) + 2.5 ppm/oC Time constant: T63 2 minutes at 0.5 m/s air velocity CO2 – Output 2: Measuring range 0 - 5000 ppm Output resolution 0.001V/ppm CO2 Accuracy 400 – 10000ppm 50ppm + 5% of reading ppm Temperature stability + 2.5 ppm/oC Time constant T63 2 minutes at 0.5 m/s air speed General: Power supply: 13.5 - 30 VDC Supply Current: No Load 8mA, Max Load 55mA Temperature, operation: CO2: CO2 valid 0 - +50 oC Temperature, operation: -40 - +60 oC Temperature, storage: -40 - +70 oC IP protection class: IP67 (DIN 40050-9) NEMA 1, 3, 4, 6 Cable Length: 2m Cable conductor size: 4 x 0.34 (4 x AWG22) mm2 Illustration similar

Manufacturer item no.: 140332 DOL 119/140332 is a sensor for measuring carbon dioxide/CO2. The sensor is intended for measurement in livestock houses and industrial environments. The sensor's measurement range has been chosen to help monitor the animal comfort zone and support fault conditions, if any, in barns heated by direct combustion. The sensor is protected by a robust housing and behind a carefully selected filter. The sensor comes with a cable and a cap to protect the sensor during washing and disinfecting. The sensor must be placed in the middle of the house. The distance to the floor must be at least 50 cm. However, the sensor must be set up out of the reach of the animals. Supplied with an M12 connector and blanking plug and protection cap for DOL 119. TECHNICAL SPECIFICATIONS   Output: Output current range (output 1) 4 - 20 mA Current range (output 2) 4 - 20 mA Limited output power per port 20mA Output Impedance See Load vs. Supply Diagram Recommended load impedance max. cable length at 0.75 mm2 max. cable length @ 1.50 mm2 load impedance CO2 – Output 1: Measuring range 0-10000ppm Resolution 0.0016mA/ppm CO2 Accuracy 400 – 10000ppm 50ppm + 5% of reading ppm Temperature stability (0-50°C) + 2.5 ppm/°C Time constant: T63 2 min at 0.5 m/s air velocity CO2 – Output 2: Measuring range 0 – 5000ppm Resolution 0.0032mA/ppm CO2 Accuracy 400 – 10000ppm 50ppm + 5% of reading ppm Temperature stability + 2.5 ppm/°C Time constant T63 2 min at 0.5 m/s air speed General: Supply voltage 13.5 – 30 VDC Supply current idle 8 mA maximum load 55mA Temperature, operation CO2: CO2 valid 0 – +50°C Temperature, operation -40 – +60°C Temperature, storage -40 – +70°C IP classification IP67 (DIN 40050-9) NEMA-1, 3, 4, 6 Cable length 2m Cable conductor size 4 x 0.34 (4 x AWG22) mm2 Illustration similar

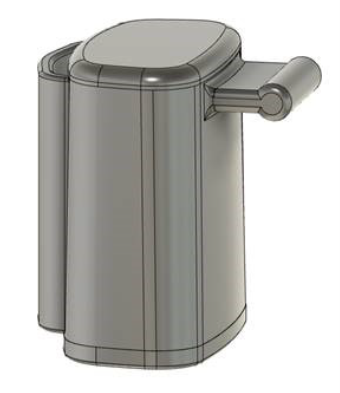

Manufacturer item no.: 140261Protective cap for the DOL 119/139, which ensures that the sensor is not damaged during cleaning work, for example.1 set contains 5 pieces Ilustration similar

Manufacturer item no.: 140200 (Alternative for 140207, 140203, 140295)The DOL 12 temperature sensor is a simple temperature sensor. This sensor is well suited for use in environments where a robust design is required and can be used in temperatures between minus 40 and plus 100 °C.The sensor can be used to measure both indoor and outdoor temperature and is supplied with a 1.5 meter 2-wire cable.The DOL 12 sensor is IP 67 protected and has an accuracy of +0.5 °C.TECHNICAL DATAelectric    Measuring range: -40 °C to +100 °C    Accuracy: ±0.5°C    Time constant T63 5 min at 0.5 m/s air speedEnvironment    ambient temperature. Operation and storage: -40 °C to +100 °C    protection class. Electronics: IP 67    Length: diameter 75mm. 14mm    Two-core cable. 1.4m. Diameter 5mmsensor properties    -40℃ 82.50kΩ 8.08V    0°C 32.91kΩ 6.37V    60°C 6.59kΩ 2.68V

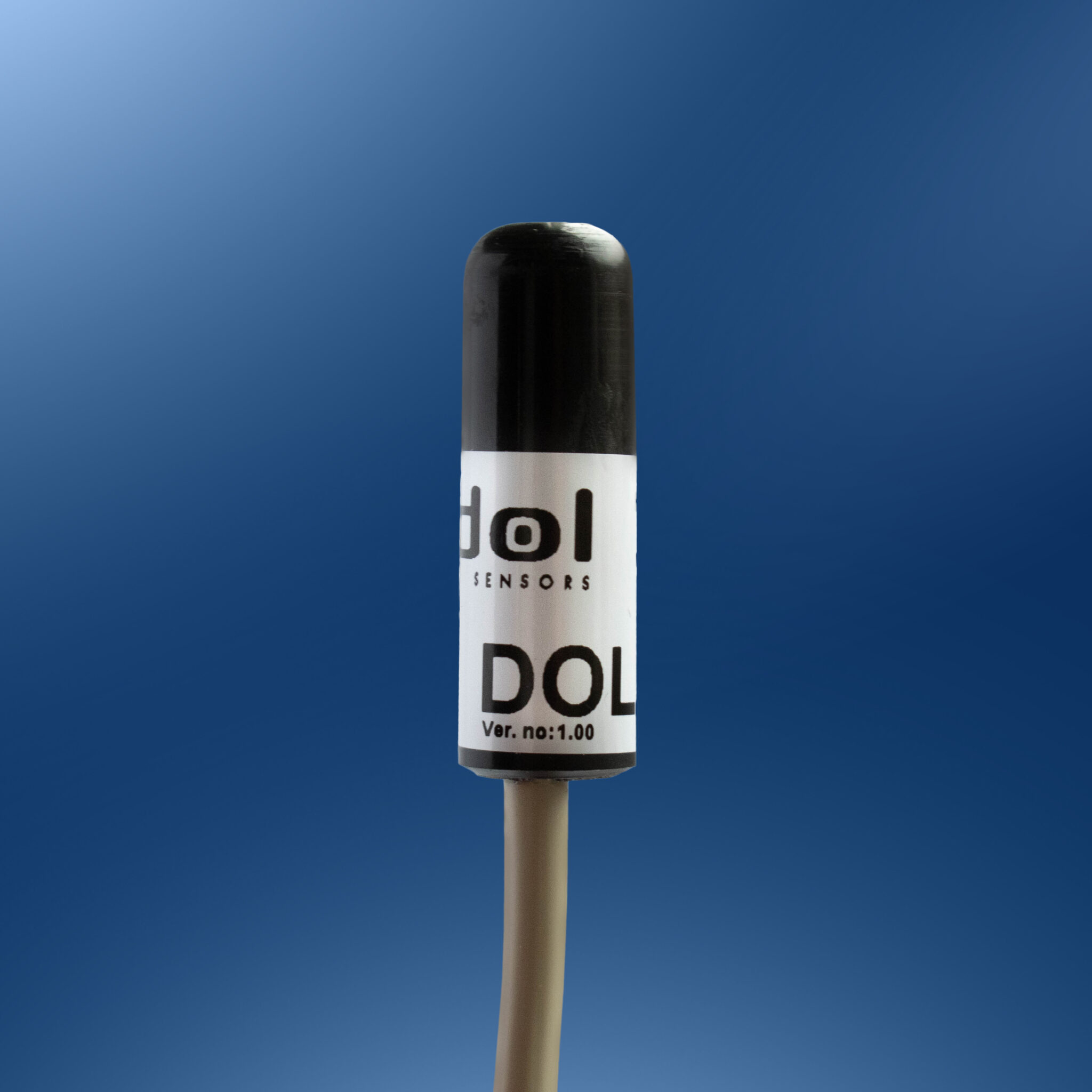

Manufacturer item 140207 DOL 13 temperature sensor is a universal, fully electronic temperature sensor. The electronics of the sensor is embedded in special plastic and it is well suited for application in environments, where a sturdy design is required. The temperature sensor consists of an embedded temperature transducer and protection components. DOL 13 is used for measuring both inside and outside temperatures. When connected to 4-14 V it can measure a power supply of 1 μA/°Kelvin (-273.2 °C), i.e. 300 μA at 26.8 °C.If you measure the resistance (Ω), there is passage (diode) one way but a non-usable figure the other way. Illustration similar

Manufacturer item no.: 140283 DOL 139 is a sensor for measuring carbon dioxide/CO2, relative humidity and temperature. The sensor is used to monitor and control homes and industrial environments. The sensor is protected by a sturdy housing and behind a carefully selected filter. The sensor comes with cable and a cap to protect the sensor -ring washing and disinfection.  TECHNICAL SPECIFICATIONS Output voltage range: 0 - 10 VDC Limited output power per port: 20 mA Output Impedance: <1Ω Recommended load impedance: >100 kΩ max. Cable length: at 1.50 mm2 200m Load Impedance: >0.5kΩ Relative humidity: measuring range 0-100%RH Resolution: 0.1V/%RH Accuracy: +10 °C - +40 °C (40-80%RH)+/-3 %RH Accuracy: 10% RH - 95% RH +/-3 + 0.02 x measured value %RH Time constant: T63: 4 min at 0.5 m/s air speed Temperature measuring range: -40 – +60 °C Resolution: 0.1V/AC Accuracy: +10°C - +40°C +/-0.75°C Accuracy 0°C - +60°C +/-1.5°C Time constant T63 7 min at 0.5 m/s Air velocity CO2 measurement range 0-10000ppm Resolution: 0.001V/ppm Accuracy: 400 - 10000 50ppm + 5% of reading Time constant T63: 2 min at 0.5 m/s air speed Supply voltage: 13.5 - 30 VDC Supply current idle: 9 mA maximum load: 105mA Temperature operation CO2: 0 - +50 °C temperature, Operation: -40 - +60 °C temperature, Storage: -40 - +70 °C IP classification: IP67 (DIN 40050-9) NEMA-1, 3, 4, 6 Illustration similar
