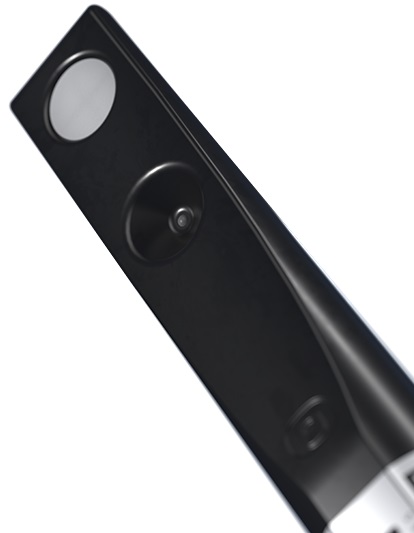

DOL 114 hum. and temp. sensor 0-5V
| Quantity | Unit price |
|---|---|
| To 4 |
€235.08*
|
| To 9 |
€211.57*
|
| From 10 |
€188.06*
|
Available in 5 days, delivery time 1-3 days
Manufacturer item no.: 140256
DOL 114 is a high-precision sensor for measuring relative humidity and temperature. The sensor was developed for use in livestock farming, but it is suitable for numerous industrial purposes. The sensor has two analogue outputs with very low output resistance and full protection against short circuits and cable faults. The special sensor element and the integrated filter enable use in livestock stables with a constantly high level of humidity. Depending on requirements, the sensor can be equipped with an integrated termination socket or a cable and with a specially adapted specification range. The sensor is controlled by a microprocessor and has a two-color LED diode for displaying operating status and fault diagnosis. The sensor is available with an extinguished diode on request. T
ECHNICAL SPECIFICATIONS
Measuring range:
- Humidity: 0 – 100% RH 17 – 100% RH*
- Temperature: - 40°C – 60°C 0 - 60°C
Accuracy :
- Humidity: +/-3% RH (40-85%) +/- 4% RH (10-95%) at 0-40°C
- Temperature: +10°C - 40°C:± 0.6°C;- 30°C - 60°C: ±1.5°C
Output signal:
- Humidity: 0.05V/%RH
- Temperature: 0.05V/°C; 0°C at 2V
- 20 s at 0.5 m/s air speed 6 min.
- at 0.5 m/s air speed
- Electrical connection: 11 – 30 V DC
- Current: 12mA no load / 35mA max load
- Load: > 500Ω - < 10MΩ
- Recommended load: ≥ 100 kΩ
- Output current: 20 mA per output (current limit)
- Output Impedance: <1Ω
- Operating and ambient temperature, storage: - 40 °C - 60 °C
- IP classification: IP 67
- Cable: 2m. 4 x 22AWG / 0.34mm2
- Maximum cable length 100 m at 0.75 mm2 200 m at 1.50 mm2
| Manufacturer item no.: | 140256 |
|---|---|
| Output signal: | 0-5 V |
| Supply voltage: | 11 - 30 V DC |
| Sensor type: | Luftfeuchtigkeit, Temperatur |
| Messbereich: | -40 / +60 °C, 0-100 % |
