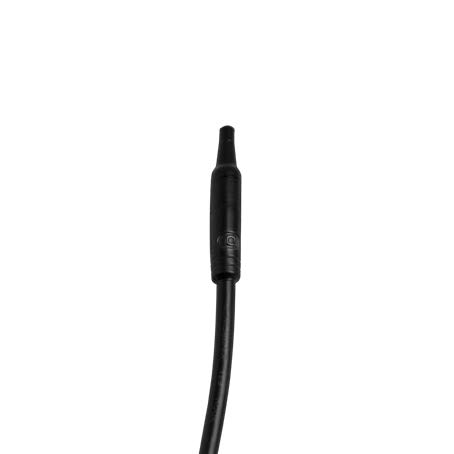

DOL 10 temperature sensor 1.5 m cable
| Quantity | Unit price |
|---|---|
| To 1 |
€32.66*
|
| To 4 |
€30.21*
|
| From 5 |
€27.76*
|
Available, delivery time: 1-3 days
Product number:
4512
Product information "DOL 10 temperature sensor 1.5 m cable"
Manufacturer item no.: 140246
The DOL 10 is a simple temperature sensor. This sensor is well suited for use in environments that require a robust design and fast response time.
The temperature sensor is used to measure the inside and outside temperature and has an accuracy of + 0.5 °C.
The sensor has a temperature range of minus 40 to plus 60 °C and is protected according to IP67.
The DOL 10 comes with a 1.5 meter cable. (Optional 5 meter cable, please inquire)
TECHNICAL DATA
electric
Measuring range -40°C to +60°C
Accuracy ±0.5°C
Environment
Ambient temperature, operation and storage -40°C to +60°C
Protection class IP 67

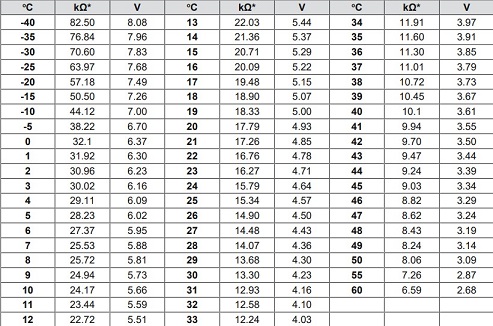

sensor properties
-40℃ 82.50kΩ 8.08V
0°C 32.91kΩ 6.37V
60°C 6.59kΩ 2.68V
Illustration similar
| Manufacturer item no.: | 140246 |
|---|---|
| Output signal: | 6 - 83 kΩ |
| Supply voltage: | 10 VDC |
| Sensor type: | Temperatur |
| Messbereich: | -40 / +60 °C |
