DOL 20 SCR capacitive sensor 20-280V AC/DC
From
€90.00*
Manufacturer item no.:
103271
Supply voltage:
20-280 V AC/DC
Sensor type:
2 Ader SCR NC (B)
Switching delay:
0-600s Aus
Surface & Ø:
Smooth rectangular
Manufacturer item no.: 103271The DOL 20R sensor is a flat sensor typically used for level control in feed bins, pans, silos and bins and for control of feed lines in poultry production. It can be mounted on the outside of the plastic feed container because it can detect feed through plastic. The sensor sensitivity of the DOL 20R can be fixed or adjusted using trimmers for different feed types. The DOL 20SCR sensor has an SRC output, while the DOL 20R version has potential-free relay contacts with changeover function.TECHNICAL DATAelectricSupply voltage 20-280 VAC/VDCMinimum. ON current (Im) mA RMS/DC < 10 (Ue = 20 - 90) < 4 (Ue = 90 - 280)Off current (Ir) mA RMS/DC < 3 (Ue = 20 - 90) < 1 (Ue = 90 - 280)Voltage drop (Out) (current > 20mA) < 6mA RMS/V DCTime delay, switch on 150 msTime delay from 0-3600 sTime delay on 0-3600 sSwitching distance 0-12 mmHysteresis 8-10%On timer 0-7200 sEnvironmentAmbient temperature, operation and storage -20°C to +70°CProtection class IP 67

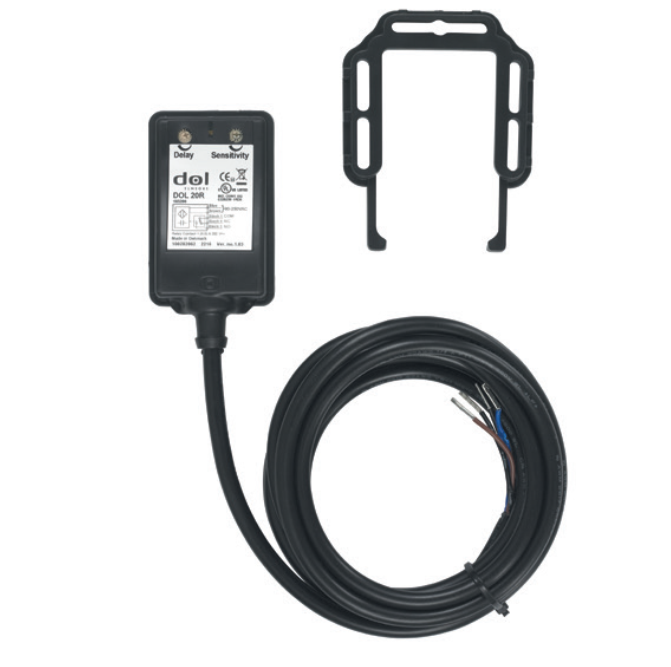

DOL 20R capacitive sensor 90-250 VAC relay
From
€104.50*
Manufacturer item no.:
103266
Output signal:
Relais
Supply voltage:
90-250 V AC
Sensor type:
5 Ader Relay NO/NC
Switching delay:
0-600s Aus
Surface & Ø:
Smooth rectangular
Manufacturer item no.: 103266The DOL 20R sensor is a flat sensor typically used for level control in feed bins, pans, silos and bins and for control of feed lines in poultry production. It can be mounted on the outside of the plastic feed container because it can detect feed through plastic. The sensor sensitivity of the DOL 20R can be fixed or adjusted using trimmers for different feed types. The DOL 20SCR sensor has an SRC output, while the DOL 20R version has potential-free relay contacts with changeover function.TECHNICAL DATAelectricSupply voltage 90-250 VACRelay at 250V 0.5A inductive, 1A Ohm NO and NCTime delay, switch on 300 msTime delay ON 0-600 sTime delay OFF 1 sSwitching distance 0-12 mmHysteresis 8-10%EnvironmentAmbient temperature, operation and storage -20°C to +70°CProtection class IP 67
Illustration similar
DOL 20RR capacitive sensor
From
€104.50*
Manufacturer item no.:
103265
Supply voltage:
90-250 V AC
Sensor type:
5 Ader Relay NO/NC
Switching delay:
0-600s Ein
Surface & Ø:
Smooth rectangular
Manufacturer item no.: 103265The DOL 20R sensor is a flat sensor typically used for level control in feed bins, pans, silos and bins and for control of feed lines in poultry production. It can be mounted on the outside of the plastic feed container because it can detect feed through plastic. The sensor sensitivity of the DOL 20R can be fixed or adjusted using trimmers for different feed types. The DOL 20SCR sensor has an SRC output, while the DOL 20R version has potential-free relay contacts with changeover function.TECHNICAL DATAelectricSupply voltage 90-250 VACRelay at 250V 0.5A inductive, 1A Ohm NO and NCTime delay, switch on 300 msTime delay on 1 sTime delay off 0-600 sSwitching distance 0-12 mmHysteresis 8-10%EnvironmentAmbient temperature, operation and storage -20°C to +70°CProtection class IP 67
Illustration similar

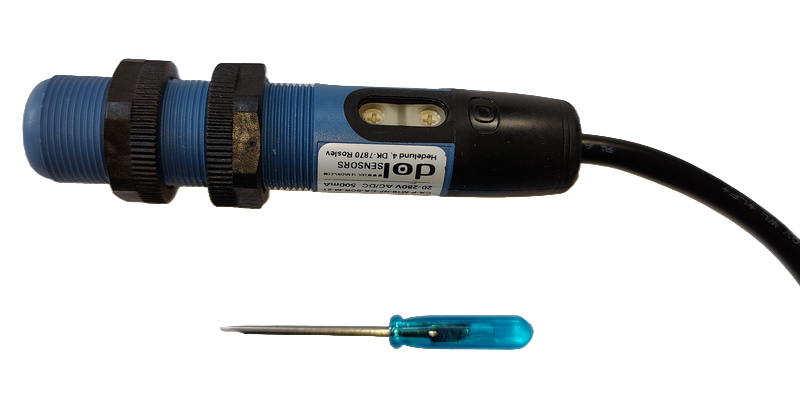

DOL 26 CA-P-M18-NF-CA-NPN-2-2T 0-600sec
From
€68.28*
Manufacturer item no.:
105113
Supply voltage:
10-36 V DC
Sensor type:
4 Ader NPN NC/NO
Switching delay:
0-600s Aus
Surface & Ø:
Thread M18
Manufacturer Item No.: 105113
The DOL 26/105113 is a complete 18mm sensor series. Thanks to its mechanical design, the DOL 26 can be ideally integrated into applications with limited space. Versions with "full-return" of the cable are particularly suitable for feeding bowls. In standby mode, the DOL 26 consumes little power - therefore several sensors can be used simultaneously on the same contactor. This allows control of cross auger installations. The DOL 26 is particularly immune to EMI, short circuits and overloads, i. H.; there is no risk of burning the sensors due to assembly errors.
TECHNICAL SPECIFICATIONS
Mains voltage (Ue): 10 - 36VDC
Frequency (fe): - Hz
Max Ripple: 10%
Max current (Ie): 500mA DC
Direct connection to Ue (current >> 500 mA) without damaging the sensor: > 10 times
Voltage drop, output ON (Ud): < 2.5 VDC
Temperature, operating: -20 - +70 (-4 - +158)°C (°F)
Temperature, storage: -40 - +80 (-40 - +176)°C (°F)
Degree of protection: IP69k (DIN 40050-9)
Illustration similar
DOL 26 CA-P-M18-NF-CA-NPN-2-2T 0-60sec
From
€61.47*
Manufacturer item no.:
105103
Supply voltage:
10-36 V DC
Sensor type:
4 Ader NPN NC/NO
Switching delay:
0-60s Aus
Surface & Ø:
Thread M18
Manufacturer Item No.: 105103
The DOL 26/105103 is a complete 18mm sensor series. Thanks to its mechanical design, the DOL 26 can be ideally integrated into applications with limited space. Versions with "full-return" of the cable are particularly suitable for feeding bowls. In standby mode, the DOL 26 consumes little power - therefore several sensors can be used simultaneously on the same contactor. This allows control of cross auger installations. The DOL 26 is particularly immune to EMI, short circuits and overloads, i. H.; there is no risk of burning the sensors due to assembly errors.
TECHNICAL SPECIFICATIONS
Mains voltage (Ue): 10 - 36VDC
Frequency (fe): - Hz
Max Ripple: 10%
Max current (Ie): 500mA DC
Direct connection to Ue (current >> 500 mA) without damaging the sensor: > 10 times
Voltage drop, output ON (Ud): < 2.5 VDC
Temperature, operating: -20 - +70 (-4 - +158)°C (°F)
Temperature, storage: -40 - +80 (-40 - +176)°C (°F)
Degree of protection: IP69k (DIN 40050-9)
Illustration similar

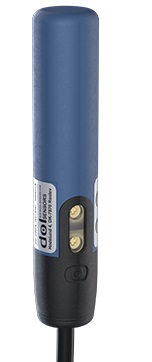

DOL 26 CA-P-M18-NF-CA-PNP-2-2T
From
€73.76*
Manufacturer item no.:
105109
Supply voltage:
20-280 V AC/DC
Sensor type:
2 Ader SCR NC (B)
Switching delay:
0-600s Ein
Surface & Ø:
Smooth Ø 18 mm
Manufacturer item no.: 105109
The DOL 26 is a complete 18mm sensor series. Thanks to its mechanical design, the DOL 26 can be ideally integrated into applications with limited space. Versions with "full-return" of the cable are particularly suitable for feeding bowls. In standby mode, the DOL 26 consumes little power - therefore several sensors can be used simultaneously on the same contactor. This allows control of cross auger installations. The DOL 26 is particularly immune to EMI, short circuits and overloads, i. H.; there is no risk of burning the sensors due to assembly errors.
TECHNICAL SPECIFICATIONS
Model:105109
Mains voltage (Ue): 20-280VAC / VDC
Frequency (fe): 47 - 63 Hz Max
Current (Ie): 500mA RMS / mA DC
Load dip current: < 2.5A at 30 msA
Direct connection to Ue (current >> 500 mA)
without damaging the sensor: > 10 times Min.
ON current (Im):< 10 (Ue = 20 - 90) ; < 6 (Ue = 90 - 280)mA RMS / mA DC OFF
current (Ir): < 3 (Ue = 20 - 90) mA RMS / mA DC; < 1 (Ue = 90 - 280) mA RMS / mA DC
Voltage drop, output ON (Ud): < 6 V RMS / V DC
Temperature, operating: -20 - +70 (-4 - +158)°C (°F)
Temperature, storage: -40 - +80 (-40 - +176)°C (°F)
Degree of protection: IP69k (DIN 40050-9)
Illustration similar
DOL 26 CA-P-M18-NF-CA-PNP-2-2T
From
€73.76*
Manufacturer item no.:
105109
Supply voltage:
20-280 V AC/DC
Sensor type:
2 Ader SCR NC (B)
Switching delay:
0-600s Ein
Surface & Ø:
Smooth Ø 18 mm
Manufacturer item no.: 105119
The DOL 26 is a complete 18mm sensor series. Thanks to its mechanical design, the DOL 26 can be ideally integrated into applications with limited space. Versions with "full-return" of the cable are particularly suitable for feeding bowls. In standby mode, the DOL 26 consumes little power - therefore several sensors can be used simultaneously on the same contactor. This allows control of cross auger installations. The DOL 26 is particularly immune to EMI, short circuits and overloads, i. H.; there is no risk of burning the sensors due to assembly errors.
TECHNICAL SPECIFICATIONS
Model:105119
Mains voltage (Ue): 20-280VAC / VDC
Frequency (fe): 47 - 63 Hz
Max Current (Ie): 500mA RMS / mA DC
Load dip current: < 2.5A at 30 msA
Direct connection to Ue (current >> 500 mA) without damaging the sensor: > 10 times
Min. ON current (Im):< 10 (Ue = 20 - 90) ; < 6 (Ue = 90 - 280)mA RMS / mA DC
OFF current (Ir): < 3 (Ue = 20 - 90) mA RMS / mA DC; < 1 (Ue = 90 - 280) mA RMS / mA DC
Voltage drop, output ON (Ud): < 6 V RMS / V DC
Temperature, operating: -20 - +70 (-4 - +158)°C (°F)
Temperature, storage: -40 - +80 (-40 - +176)°C (°F)
Degree of protection: IP69k (DIN 40050-9)
Illustration similar
DOL 26 CA-P-M18-NF-CA-PNP-2-2T 0-600sec
From
€68.28*
Manufacturer item no.:
105112
Supply voltage:
10-36 V DC
Sensor type:
4 Ader PNP NC/NO
Switching delay:
0-600s Aus
Surface & Ø:
Thread M18
Manufacturer Item No.: 105112
The DOL 26/105112 is a complete 18mm sensor series. Thanks to its mechanical design, the DOL 26 can be ideally integrated into applications with limited space. Versions with "full-return" of the cable are particularly suitable for feeding bowls. In standby mode, the DOL 26 consumes little power - therefore several sensors can be used simultaneously on the same contactor. This allows control of cross auger installations. The DOL 26 is particularly immune to EMI, short circuits and overloads, i. H.; there is no risk of burning the sensors due to assembly errors.
TECHNICAL SPECIFICATIONS
Mains voltage (Ue): 10 - 36VDC
Frequency (fe): - Hz
Max Ripple: 10%
Max current (Ie): 500mA DC
Direct connection to Ue (current >> 500 mA) without damaging the sensor: > 10 times
Voltage drop, output ON (Ud): < 2.5 VDC
Temperature, operating: -20 - +70 (-4 - +158)°C (°F)
Temperature, storage: -40 - +80 (-40 - +176)°C (°F)
Degree of protection: IP69k (DIN 40050-9)
Illustration similar
DOL 26 CA-P-M18-NF-CA-PNP-2-2T 0-60sec
From
€68.28*
Manufacturer item no.:
105102
Supply voltage:
10-36 V DC
Sensor type:
4 Ader PNP NC/NO
Switching delay:
0-60s Aus
Surface & Ø:
Thread M18
Manufacturer Item No.: 105102
The DOL 26/105102 is a complete 18mm sensor series. Thanks to its mechanical design, the DOL 26 can be ideally integrated into applications with limited space. Versions with "full-return" of the cable are particularly suitable for feeding bowls. In standby mode, the DOL 26 consumes little power - therefore several sensors can be used simultaneously on the same contactor. This allows control of cross auger installations. The DOL 26 is particularly immune to EMI, short circuits and overloads, i. H.; there is no risk of burning the sensors due to assembly errors.
TECHNICAL SPECIFICATIONS
Mains voltage (Ue): 10 - 36VDC
Frequency (fe): - Hz
Max Ripple: 10%
Max current (Ie): 500mA DC
Direct connection to Ue (current >> 500 mA) without damaging the sensor: > 10 times
Voltage drop, output ON (Ud): < 2.5 VDC
Temperature, operating: -20 - +70 (-4 - +158)°C (°F)
Temperature, storage: -40 - +80 (-40 - +176)°C (°F)
Degree of protection: IP69k (DIN 40050-9)
Illustration similar
DOL 26 CA-P-M18-NF-CA-SCR-B-0T
From
€60.75*
Manufacturer item no.:
105117
Supply voltage:
20-280 V AC/DC
Sensor type:
2 Ader SCR NC (B)
Switching delay:
Keine
Surface & Ø:
Thread M18
Manufacturer Item No.: 105117
The DOL 26 is a complete 18mm sensor series. Thanks to its mechanical design, the DOL 26 can be ideally integrated into applications with limited space. Versions with "full-return" of the cable are particularly suitable for feeding bowls. In standby mode, the DOL 26 consumes little power - therefore several sensors can be used simultaneously on the same contactor. This allows control of cross auger installations. The DOL 26 is particularly immune to EMI, short circuits and overloads, i. H.; there is no risk of burning the sensors due to assembly errors.
TECHNICAL SPECIFICATIONS
Mains voltage (Ue): 20-280VAC / VDC
Frequency (fe): 47 - 63 Hz
Max Current (Ie): 500mA RMS / mA DC
Load dip current: < 2.5A at 30 msA
Direct connection to Ue (current >> 500 mA) without damaging the sensor: > 10 times
Min. ON current (Im):< 10 (Ue = 20 - 90) ; < 6 (Ue = 90 - 280)mA RMS / mA DC
OFF current (Ir): < 3 (Ue = 20 - 90) mA RMS / mA DC; < 1 (Ue = 90 - 280) mA RMS / mA DC
Voltage drop, output ON (Ud): < 6 V RMS / V DC
Temperature, operating: -20 - +70 (-4 - +158)°C (°F)
Temperature, storage: -40 - +80 (-40 - +176)°C (°F)
Degree of protection: IP69k (DIN 40050-9)
Illustration similar
DOL 26 CA-P-M18-NF-CA-SCR-B-2T
From
€73.76*
Manufacturer item no.:
105104
Supply voltage:
20-280 V AC/DC
Sensor type:
2 Ader SCR NC (B)
Switching delay:
0-60s Ein, 0-600s Aus
Surface & Ø:
Thread M18
Manufacturer Item No.: 105104
The DOL 26 is a complete 18mm sensor series. Thanks to its mechanical design, the DOL 26 can be ideally integrated into applications with limited space. Versions with "full-return" of the cable are particularly suitable for feeding bowls. In standby mode, the DOL 26 consumes little power - therefore several sensors can be used simultaneously on the same contactor. This allows control of cross auger installations. The DOL 26 is particularly immune to EMI, short circuits and overloads, i. H.; there is no risk of burning the sensors due to assembly errors.
TECHNICAL SPECIFICATIONS
Model:105104Sensor Type SCROutput Type BreakSurface M18 Thread
Mains voltage (Ue): 20-280VAC / VDC
Frequency (fe): 47 - 63 Hz
Max Current (Ie): 500mA RMS / mA DC
Load dip current: < 2.5A at 30 msA
Direct connection to Ue (current >> 500 mA) without damaging the sensor: > 10 times
Min. ON current (Im):< 10 (Ue = 20 - 90) ; < 6 (Ue = 90 - 280)mA RMS / mA DC
OFF current (Ir): < 3 (Ue = 20 - 90) mA RMS / mA DC; < 1 (Ue = 90 - 280) mA RMS / mA DC
Voltage drop, output ON (Ud): < 6 V RMS / V DC
Temperature, operating: -20 - +70 (-4 - +158)°C (°F)
Temperature, storage: -40 - +80 (-40 - +176)°C (°F)
Degree of protection: IP69k (DIN 40050-9)
Illustration similar
DOL 26 CA-P-M18-NF-CA-SCR-B-2T
From
€73.76*
Manufacturer item no.:
105105
Supply voltage:
20-280 V AC/DC
Sensor type:
2 Ader SCR NC (B)
Switching delay:
0-60s Ein
Surface & Ø:
Thread M18
Manufacturer Item No.: 105105
The DOL 26 is a complete 18mm sensor series. Thanks to its mechanical design, the DOL 26 can be ideally integrated into applications with limited space. Versions with "full-return" of the cable are particularly suitable for feeding bowls. In standby mode, the DOL 26 consumes little power - therefore several sensors can be used simultaneously on the same contactor. This allows control of cross auger installations. The DOL 26 is particularly immune to EMI, short circuits and overloads, i. H.; there is no risk of burning the sensors due to assembly errors.
TECHNICAL SPECIFICATIONS
Model:105105
Mains voltage (Ue): 20-280VAC / VDC
Frequency (fe): 47 - 63 Hz
Max Current (Ie): 500mA RMS / mA DC
Load dip current: < 2.5A at 30 msA
Direct connection to Ue (current >> 500 mA) without damaging the sensor: > 10 times
Min. ON current (Im):< 10 (Ue = 20 - 90) ; < 6 (Ue = 90 - 280)mA RMS / mA DC
OFF current (Ir): < 3 (Ue = 20 - 90) mA RMS / mA DC; < 1 (Ue = 90 - 280) mA RMS / mA DC
Voltage drop, output ON (Ud): < 6 V RMS / V DC
Temperature, operating: -20 - +70 (-4 - +158)°C (°F)
Temperature, storage: -40 - +80 (-40 - +176)°C (°F)
Degree of protection: IP69k (DIN 40050-9)
Illustration similar

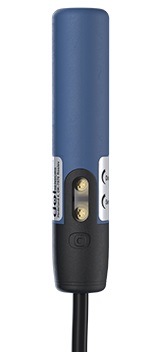

DOL 26 CA-P-Ø18-NF-CA-PNP-2-2T
From
€66.70*
Manufacturer item no.:
105120
Supply voltage:
10-36 V DC
Sensor type:
4 Ader PNP NC/NO
Switching delay:
0-600s Aus
Surface & Ø:
Smooth Ø 18 mm
Manufacturer item no.: 105120
The DOL 26 is a complete 18mm sensor series. Thanks to its mechanical design, the DOL 26 can be ideally integrated into applications with limited space. Versions with "full-return" of the cable are particularly suitable for feeding bowls. In standby mode, the DOL 26 consumes little power - therefore several sensors can be used simultaneously on the same contactor. This allows control of cross auger installations. The DOL 26 is particularly immune to EMI, short circuits and overloads, i. H.; there is no risk of burning the sensors due to assembly errors.
TECHNICAL SPECIFICATIONS
Model:105120
Mains voltage (Ue): 10-36 VDC
Current (Ie): 500mA DC
Load dip current: < 2.5A at 30 msA
Direct connection to Ue (current >> 500 mA)
without damaging the sensor: > 10 times Min.
Voltage drop, output ON (Ud): < 2,5 V RMS / V DC
Temperature, operating: -20 - +70 (-4 - +158)°C (°F)
Temperature, storage: -40 - +80 (-40 - +176)°C (°F)
Degree of protection: IP69k (DIN 40050-9)
Illustration similar
DOL 26 CA-P-Ø18-NF-CA-SCR-B-2T
From
€71.94*
Manufacturer item no.:
105108
Supply voltage:
20-280 V AC/DC
Sensor type:
2 Ader SCR NC (B)
Switching delay:
0-600s Aus
Surface & Ø:
Smooth Ø 18 mm
Manufacturer item no.: 105108
The DOL 26 is a complete 18mm sensor series. Thanks to its mechanical design, the DOL 26 can be ideally integrated into applications with limited space. Versions with "full-return" of the cable are particularly suitable for feeding bowls. In standby mode, the DOL 26 consumes little power - therefore several sensors can be used simultaneously on the same contactor. This allows control of cross auger installations. The DOL 26 is particularly immune to EMI, short circuits and overloads, i. H.; there is no risk of burning the sensors due to assembly errors.
TECHNICAL SPECIFICATIONS
Sensor Type SCROutput Type BreakSurface Ø18 mm smoothMains voltage (Ue): 20-280VAC / VDC
Frequency (fe): 47 - 63 Hz
Max Current (Ie): 500mA RMS / mA DC
Load dip current: < 2.5A at 30 msA
Direct connection to Ue (current >> 500 mA) without damaging the sensor: > 10 times
Min. ON current (Im):< 10 (Ue = 20 - 90) ; < 6 (Ue = 90 - 280)mA RMS / mA DC
OFF current (Ir): < 3 (Ue = 20 - 90) mA RMS / mA DC; < 1 (Ue = 90 - 280) mA RMS / mA DC
Voltage drop, output ON (Ud): < 6 V RMS / V DC
Temperature, operating: -20 - +70 (-4 - +158)°C (°F)
Temperature, storage: -40 - +80 (-40 - +176)°C (°F)
Degree of protection: IP69k (DIN 40050-9)
Illustration similar

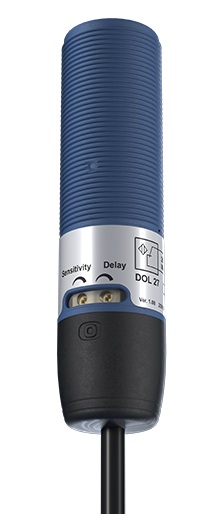

DOL 27 CA-P-M30-NF-CA-SCR-B-2T
From
€71.40*
Manufacturer item no.:
105301
Supply voltage:
20-280 V AC/DC
Sensor type:
2 Ader SCR NC (B)
Switching delay:
0-600s Aus
Surface & Ø:
Thread M30
Manufacturer Item No.:105301
DOL 27 is a capacitive sensor for detecting loose and solid materials. SCR output versions are available in 2-wire versions. The products are suitable together with contactors, relays, PLCs and similar in the agricultural and industrial sectors. DOL 27 is immune to EMI, short circuits and any overload. No more burned out sensors due to installation errors. Very low power consumption when switched off - allows the possibility for sensors to work in parallel on the same contactor. Unique control option cross worm systems. Protection class IP69k and NEMA 1/3/4/6/12/13.
TECHNICAL SPECIFICATIONS
Model:105301
Mains voltage (Ue): 20-280VAC / VDC
Frequency (fe): 47-63Hz Max Current (Ie): 500mA RMS / mA DC
Load Dip Current: < 2.5A @ 30ms A
Direct connection to Ue (current >> 500 mA)
without damaging the sensor: > 10 times Min.
ON current (Im): < 10 (Ue = 20 - 90)mA RMS / mA DC; < 6 (Ue = 90 - 280) V
OFF current (Ir): < 3 (Ue = 20 - 90)mA RMS / mA DC; < 1 (Ue = 90 - 280)mA RMS / mA DC
Voltage drop, output ON (Ud): < 6 V RMS / V DC
Detection speed: > 15 Hz
Time delay OFF* (adjustable): 0.1 – 600 s
Activation distance (Sn) (adjustable): 0 - 20 (0 - 0.79) mm (inches)
Safe Activation Distance (Sa)*: 4 - 15 (0.16 - 0.59) mm (inches)
Repeatability (R): 5%
Hysteresis (H): 4 - 10%
Temperature, operating: -20 - +70 (-4 - +158) °C (°F)
Temperature, storage: -40 - +80 (-40 - +176) °C (°F)
Degree of protection: IP69k (DIN 40050-9)
NEMA 1, 3, 4, 6, 12, 13
Illustration similar

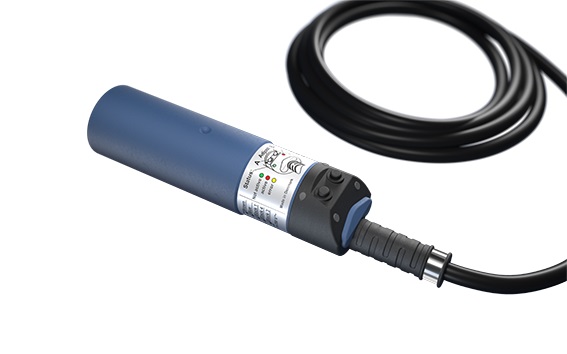

DOL 28R capacitive sensor 20-280V AC/DC
From
€98.38*
Manufacturer item no.:
100694
Supply voltage:
20-280 V AC/DC
Sensor type:
5 Ader Relay NO/NC
Switching delay:
0-600s Aus
Surface & Ø:
Smooth Ø 30 mm
Manufacturer Item No.: 100694
The DOL 28R is a unique sensor that combines a 30mm feed sensor with an integrated light. The DOL 28R is suitable for feed pans in poultry production where the light ensures that the pans are noticed by the birds. This in turn ensures a stable feed supply. Compared to discrete lighting solutions, the DOL 28R is easy to install and can also be used in upgrades to existing feeding systems with an integrated lighting solution.
TECHNICAL SPECIFICATIONS
Model:100694
Mains Voltage: 20-280V AC/DC
Frequency: 47-63Hz
Max. voltage of the relay switch: 250 volts AC
Max. power of the relay switch: Resistive load: 4 A / Inductive load: 2 A
Safety:Relay switch and mains voltage are galvanically isolated.
Test voltage 4kV AC
Activation distance: Adjustable between 0 and 20 mm depending on the material.
Time Delay: Adjustable between 0 and 600 seconds
Degree of protection: IP 69k. NEMA 1, 3, 4, 6, 12, 13
Ambient temperature, operation: -20 to +70 °C (-4 to +158 °F)
Ambient temperature, storage: -30 to +80 °C (-22 to +176 °F)
Illustration similar

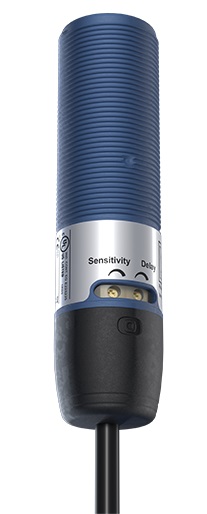

DOL 28RG capacitive sensor 20-280V AC/DC
From
€98.38*
Manufacturer item no.:
100696
Supply voltage:
20-280 V AC/DC
Sensor type:
5 Ader Relay NO/NC
Switching delay:
0-600s Aus
Surface & Ø:
Thread M30
The DOL 28R is a unique sensor that combines a 30mm feed sensor with an integrated light. The DOL 28R is suitable for feed pans in poultry production where the light ensures that the pans are noticed by the birds. This in turn ensures a stable feed supply. Compared to discrete lighting solutions, the DOL 28R is easy to install and can also be used in upgrades to existing feeding systems with an integrated lighting solution.
TECHNICAL SPECIFICATIONS
Model: 100696
Mains Voltage: 20-280V AC/DC
Frequency: 47-63Hz
Max. voltage of the relay switch: 250 volts AC
Max. power of the relay switch: Resistive load: 4 A / Inductive load: 2 A
Safety:Relay switch and mains voltage are galvanically isolated.
Test voltage 4kV AC
Activation distance: Adjustable between 0 and 20 mm depending on the material.
Time Delay: Adjustable between 0 and 600 seconds
Degree of protection: IP 69k. NEMA 1, 3, 4, 6, 12, 13
Ambient temperature, operation: -20 to +70 °C (-4 to +158 °F)
Ambient temperature, storage: -30 to +80 °C (-22 to +176 °F)

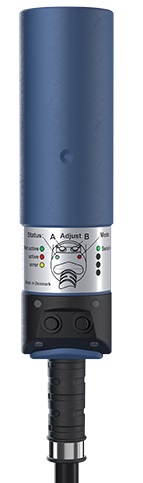

DOL 41R capacitive sensor, 10-30 V AC/DC
From
€77.10*
Manufacturer item no.:
100672
Supply voltage:
10-30 V AC/DC
Sensor type:
5 Ader Relay NO/NC
Switching delay:
Keine
Surface & Ø:
Smooth Ø 30 mm
Manufacturer Art. No. 100672
A capacitive sensor is typically used as an empty, full and level indicator in tanks, silos and containers. The powerful built in relay means it can control many functions directly. DOL 41R has no time delay. The relay switches as soon as the sensor activates and remains in that position until the activation influence ceases.
TECHNICAL SPECIFICATIONS
Model:100672
Supply voltage: 90 - 250 V AC
Frequency: 50 - 60 Hertz
Consumption: 2VA
Relay Switch Max Voltage: 250 VAC
Relay switch max. power AC: 5 A at cos φ = 1, 2 A at cos φ = 0.8, 0.35 A at cos φ = 0.4
Relay switch max. power DC: 5 A at 0 - 30 V DC
Safety: Relay switch and supply voltage are galvanically isolated. Test voltage 4 kV AC
Activation distance: Adjustable 0 - 15 mm depending on the material. Factory setting for grain
Time Delay: Adjustable 0-240 min. Factory setting for 30 sec.
Protection class: IP67
Ambient temperature, operation: -20 °C to +70 °C / -4 °F to +158 °F
Ambient temperature storage: -30 °C to +85 °C / -22 °F to +185 °F
Another variant available: DOL 41R capacitive sensor, 90-250 V AC
Illustration similar
DOL 41R capacitive sensor, 90-250 V AC
From
€77.10*
Manufacturer item no.:
100671
Supply voltage:
90-250 V AC
Sensor type:
5 Ader Relay NO/NC
Switching delay:
Keine
Surface & Ø:
Smooth Ø 30 mm
Manufacturer Art. No. 100671DOL 41R a capacitive sensor is typically used as an empty, full and level indicator in tanks, silos and containers. The powerful built in relay means it can control many functions directly. DOL 41R Model 100671 has no time delay. The relay switches as soon as the sensor activates and remains in that position until the activation influence ceases.TECHNICAL DATA Model:100671 Supply voltage: 90 - 250 V AC Frequency: 50 - 60 Hertz Consumption: 2VA Relay Switch Max Voltage: 250 VAC Relay switch max. power AC: 5 A at cos φ = 1, 2 A at cos φ = 0.8, 0.35 A at cos φ = 0.4 Relay switch max. power DC: 5 A at 0 - 30 V DC Safety: Relay switch and supply voltage are galvanically isolated. Test voltage 4 kV AC Activation distance: Adjustable 0 - 15 mm depending on the material. Factory setting for grain Time Delay: Adjustable 0-240 min. Factory setting for 30 sec. Protection class: IP67 Ambient temperature, operation: -20 °C to +70 °C / -4 °F to +158 °F Ambient temperature storage: -30 °C to +85 °C / -22 °F to +185 °F Smooth surface Ø30 mmAnother variant available:DOL 41R capacitive sensor, 10-30 V AC/DC
DOL 43R capacitive sensor, 10-30 V AC/DC
From
€85.70*
Manufacturer item no.:
100662
Supply voltage:
10-30 V AC/DC
Sensor type:
5 Ader Relay NO/NC
Switching delay:
0-4hrs. Aus
Surface & Ø:
Smooth Ø 30 mm
Manufacturer Art. No.: 100662
DOL 43R a capacitive sensor is typically used as an empty, full and level indicator in tanks, silos and containers. The powerful built in relay means it can control many functions directly. DOL 43R has a delayed disconnect option. Delay starts when activation stops (red flash). When this time ends, the relay switches back.
TECHNICAL SPECIFICATIONS
Model:100662
Supply voltage: 10-30V AC/DC
Frequency: 50 - 60 Hertz
Consumption: 2VA
Relay Switch Max Voltage: 250 VAC
Relay switch max. power AC: 5 A at cos φ = 1, 2 A at cos φ = 0.8, 0.35 A at cos φ = 0.4
Relay switch max. power DC: 5 A at 0 - 30 V DC
Safety: Relay switch and supply voltage are galvanically isolated. Test voltage 4 kV AC
Activation distance: Adjustable 0 - 15 mm depending on the material. Factory setting for grain
Time Delay: Adjustable 0-240 min. Factory setting for 30 sec.
Protection class: IP67
Ambient temperature, operation: -20 °C to +70 °C / -4 °F to +158 °F
Ambient temperature storage: -30 °C to +85 °C / -22 °F to +185 °F
Another variant available:
DOL 43R capacitive sensor, 90 - 250 V AC
Illustration similar
DOL 43R capacitive sensor, 90-250 V AC
From
€85.70*
Manufacturer item no.:
100661
Supply voltage:
90-250 V AC
Sensor type:
5 Ader Relay NO/NC
Switching delay:
0-4hrs. Aus
Surface & Ø:
Smooth Ø 30 mm
Manufacturer item no.: 100661
DOL 43R a capacitive sensor is typically used as an empty, full and level indicator in tanks, silos and containers. The powerful built in relay means it can control many functions directly. DOL 43R has a delayed disconnect option. Delay starts when activation stops (red flash). When this time ends, the relay switches back.
TECHNICAL SPECIFICATIONS
Model: 100661
Supply voltage: 90-250VAC
Frequency: 50 - 60 Hertz
Consumption: 2VA
Relay Switch Max Voltage: 250 VAC
Relay switch max. power AC: 5 A at cos φ = 1, 2 A at cos φ = 0.8, 0.35 A at cos φ = 0.4
Relay switch max. power DC: 5 A at 0 - 30 V DC
Safety: Relay switch and supply voltage are galvanically isolated. Test voltage 4 kV AC
Activation distance: Adjustable 0 - 15 mm depending on the material. Factory setting for grain
Time Delay: Adjustable 0-240 min. Factory setting for 30 sec.
Protection class: IP67
Ambient temperature, operation: -20 °C to +70 °C / -4 °F to +158 °F
Ambient temperature storage: -30 °C to +85 °C / -22 °F to +185 °F
Another variant available:
DOL 43R capacitive sensor, 10-30 V AC/DC
Illustration similar
DOL 44R capacitive sensor 10-30V AC/DC
From
€79.57*
Manufacturer item no.:
100609
Supply voltage:
10-30 V AC/DC
Sensor type:
5 Ader Relay NO/NC
Switching delay:
0-600s Aus
Surface & Ø:
Smooth Ø 30 mm
Manufacturer item no.: 100609
The DOL 44 is a complete 30mm series of capacitive feed sensors with relay output. A capacitive relay sensor is typically used as an empty, full and level indicator in tanks, silos and bins. The powerful built-in relay means it can control many functions directly. The sensors have robust functionality and are easy to use. The settings can be easily changed with a small screwdriver using two trimmers. DOL 44R has a high immunity to noise from electrical communications equipment (e.g. from mobile phones) and transients (e.g. from motors or switching devices). The protection class IP69K offers the greatest possible protection against water and other liquids, e.g. B. when cleaning livestock stalls. DOL 44R is available in a variety of versions.
TECHNICAL SPECIFICATIONS
Model:100609
Supply voltage: 10-30V AC/DC
Frequency: 47 - 63 Hz relay switch max.
Voltage: 250 volts AC Relay Switch Max Current: Resistive Load: 5A Inductive Load: 2A
Safety: Relay switch and supply voltage are galvanically isolated. Test voltage 4 kV AC
Activation distance: Adjustable 0 - 15 mm depending on the material. Discontinued by the manufacturer for grain
Time Delay: Adjustable 0 - 600 sec. Factory set at 30 sec
Degree of protection: IP69k. NEMA 1, 3, 4, 6, 12, 13
Ambient temperature, operation: -20 °C - +70 °C (-4 °F - +158 °F)
Ambient temp., operation UL 508: -20 °C - +65 °C (-4 °F - +149 °F)
Ambient temperature, storage: -30 °C - +80 °C (-22 °F - +176 °F)
Illustration similar

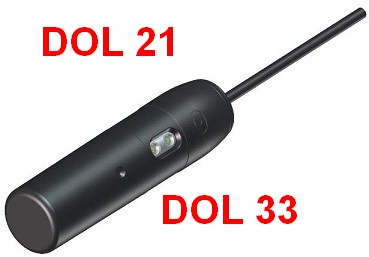

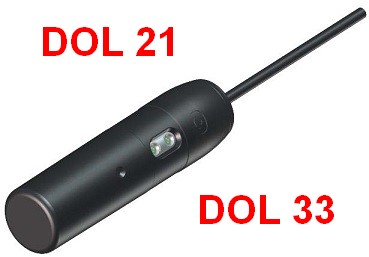

DOL 44R-33 capacitive sensor 90-265V AC
From
€79.50*
Manufacturer item no.:
100300
Supply voltage:
90-250 V AC
Sensor type:
5 Ader Relay NO/NC
Switching delay:
0-600s Aus
Surface & Ø:
Smooth Ø 32-33 mm
Manufacturer Item No.: 100300
The DOL 44R-33 is a complete 33mm series of capacitiveFeed sensors with relay output. The sensors have arobust functionality and are easy to use. The settingsCan be easily removed with a small screwdriver using two trimmerschange. DOL 44R has a high level of immunity to interferenceNoise from electrical communication technology (e.g. from mobile phones)and transients (e.g. from motors or switching devices). TheProtection class IP69K offers the greatest possible protection against water and othersliquids, e.g. B. when cleaning livestock stalls.DOL 44R is available in a variety of versions including the DOL44RH with integrated heater for refrigeration and applicationswith high humidity and the DOL 44RT is used to collect feed in pipes.
TECHNICAL SPECIFICATIONS
Model:100300Surface conical Ø32 up to Ø33 mm
Supply voltage: 90-265V AC
Frequency: 50 - 60 Hertz
Consumption: 2VA
Relay Switch Max Voltage: 250 VAC
Relay switch max. power AC: 5 A at cos φ = 1, 2 A at cos φ = 0.8, 0.35 A at cos φ = 0.4
Relay switch max. power DC: 5 A at 0 - 30 V DC
Safety: Relay switch and supply voltage are galvanically isolated. Test voltage 4 kV AC
Activation distance: Adjustable 0 - 15 mm depending on the material. Factory setting for grain
Off-Delay: Adjustable 0-600 sec. Factory setting for 30 sec.
Protection class: IP69K, NEMA 1, 3, 4, 6, 12, 13
Ambient temperature, operation: -20 °C to +70 °C / -4 °F to +158 °F
Other variants available on requestIs compatible with the following products: VC11RN, VC11RT, VC12RN, VC12RT
Illustration similar
DOL 44R-33 capacitive sensor10-30V AC/DC
From
€79.50*
Manufacturer item no.:
100309
Supply voltage:
10-30 V AC/DC
Sensor type:
5 Ader Relay NO/NC
Switching delay:
0-600s Aus
Surface & Ø:
Smooth Ø 32-33 mm
Manufacturer Item No.: 100309
The DOL 44R-33 is a complete 33mm series of capacitiveFeed sensors with relay output. The sensors have arobust functionality and are easy to use. The settingsCan be easily removed with a small screwdriver using two trimmerschange. DOL 44R has a high level of immunity to interferenceNoise from electrical communication technology (e.g. from mobile phones)and transients (e.g. from motors or switching devices). TheProtection class IP69K offers the greatest possible protection against water and othersliquids, e.g. B. when cleaning livestock stalls.DOL 44R is available in a variety of versions including the DOL44RH with integrated heater for refrigeration and applicationswith high humidity and the DOL 44RT is used to collect feed in pipes.
TECHNICAL SPECIFICATIONS
Model:100309
Supply voltage: 10-30V AC/DC
Frequency: 50 - 60 Hertz
Consumption: 2VA
Relay Switch Max Voltage: 250 VAC
Relay switch max. power AC: 5 A at cos φ = 1, 2 A at cos φ = 0.8, 0.35 A at cos φ = 0.4
Relay switch max. power DC: 5 A at 0 - 30 V DC
Safety: Relay switch and supply voltage are galvanically isolated. Test voltage 4 kV AC
Activation distance: Adjustable 0 - 15 mm depending on the material. Factory setting for grain
Time Delay: Adjustable 0-600 sec. Factory setting for 30 sec.
Protection class: IP69K
Ambient temperature, operation: -20 °C to +70 °C / -4 °F to +158 °F
Other variants available on requestIs compatible with the following products: VC11RN, VC11RT, VC12RN, VC12RT
