Your new favourite IoT remote monitoring device It's time to reinvent the classic sensor module: meet Reporter®, your new favourite solution for professional remote monitoring with alarm notifications. Reporter is a plug & play IoT sensor device with a reliable wireless internet connection using cellular data. Reporter is unique as it offers you the freedom to connect whatever sensor you need, in whatever combination you desire. Break the mould and jumpstart your own remote measuring project. Whether you require a sensor connection for your sewer water project, agricultural research, HACCP compliance in your kitchen's freezer, you name it, Reporter can do it. The sensor device offers a real-time data link to the cloud, measuring and transmitting sensor data every 30 seconds to every two hours, your choice! Every Reporter is capable of operating 24/7 on grid or solar power using the onboard battery. Technical specifications Weight 402 g Height 45 mm Width 187 mm Depth 137 mm Connectivity 4G (NB-IoT), 4G (Cat-M), 2G (GPRS) Environmental protection class IP67 Operational temperature range -10°C to +40°C Measurement interval Configurable online (options are 30 sec, 1 min, 2 min, 5 min, 10 min, 15 min, 20 min, 30 min, 1 hour, 2 hours) Grid adapter power input 5 - 22 V at 3 A (18 - 20 V at 3 A advised) Solar power input Crodeon 10 W solar panel compatible Internal battery capacity 5.200 mAh Number of ports 4 universal (+ 1 power connector) Number of channels 16 parameters per connector Power supply to the sensors (1) 6 V (derived from Reporter internal battery) 140 mA max Power supply to the sensors (2) 15 - 22 V (derived from Reporter power port) 600 mA max – 1.2 A peak   Reporter does not come with a power supply, you will have to purchase this separately! You can choose between a grid power supply, DIN rail power supply, or a solar panel. Yearly subscription As Reporter operates through the GSM network using its SIM card, it needs a yearly data subscription. The subscription covers things like connectivity and use of the Crodeon Dashboard. Kits already include a 1 year subscription with the remote monitoring device. Don't forget to purchase a yearly data subscription with your Reporter. You can also purchase the subscription multiple times to pay for multiple years, this saves you time as you won't have to renew your plan annually.

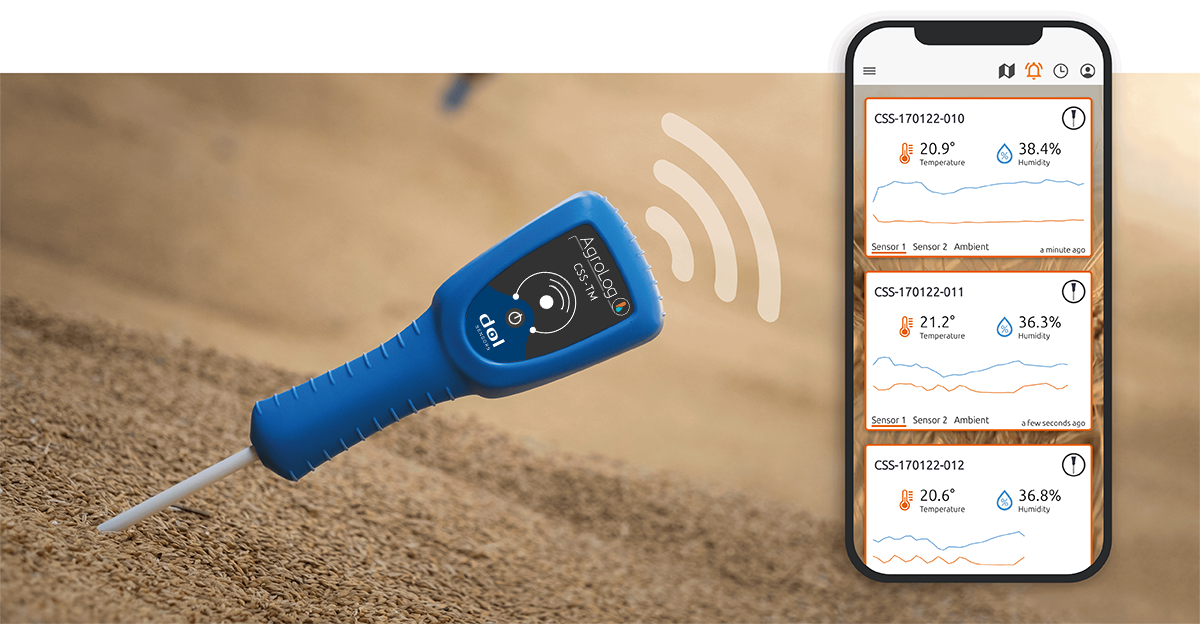

The DOL Wireless Grain Sensor CSS-TM is a wireless sensor spear designed for grain monitoring to prevent damage to crops. The grain sensor closely monitors the temperature and humidity of the stored plants. It is portable and therefore can be easily moved to where it is needed.Sensor data is displayed on the AgroLog app smartphone. App notifications when critical thresholds are reached. Hourly data update, manual measurements possible at any time if necessary.Replaceable 3.6 V lithium battery in the sensor rod with a lifespan of over 2 years.Advantages     Accurate measurement of temperature and humidity     Wireless, movable     Notifications for critical thresholds     Works with multiple crops     Waterproof     No calibration required Up to a third of the world's harvest is lost in storageAccording to a study in the special issue of Sustainability in Food Consumption and Food Security, a third of the world's harvest is lost in storage, largely due to temperature and humidity.To ensure that the harvest does not spoil and the yield does not shrink, it is important to closely monitor the temperature when storing crops. A constant temperature of 5 °C is ideal, as the risk of insect infestation and rot is significantly reduced. The reproduction and activity of insects is effectively prevented by low temperatures in the grain storage. To ensure that grain does not spoil or lose quality due to fungal attack, moisture must also be monitored closely.Two humidity and three temperature sensors on the wireless sensor wand ensure a complete and accurate condition report.Receive alerts for critical thresholdsThe wireless DOL grain sensor CSS-TM is equipped with a SIM card and is 100% wireless. The sensor also works without a gateway or separate connection near the barn. Thanks to the wireless sensor rod, data display is not only possible up close. You can check the condition of crops on the go.The sensor wand is connected to the AgroLog app, allowing access to recorded data on the smartphone. The app's many functions allow you to check the current status and historical data. Humidity or temperature fluctuations are reported. You can set thresholds in the app and will be notified when they are reached.This means you can always keep an eye on the condition of your crops.Suitable for multiple cropsThe versatile grain sensor is extremely useful for growers and farm managers. It provides insights and data to optimally control the health of a variety of different crops. Whether barley, wheat or other types of grain, corn, potatoes, various beans - the grain sensor provides real-time information about temperature and humidity from the storage.You can now manage your harvested crops based on data.User-friendlyThe sensor is delivered calibrated. The measurements are extremely accurate and the user interface is easy to understand, making it easy to use even without prior technical knowledge. The wand is wireless and therefore easy to move, no calibration is required.

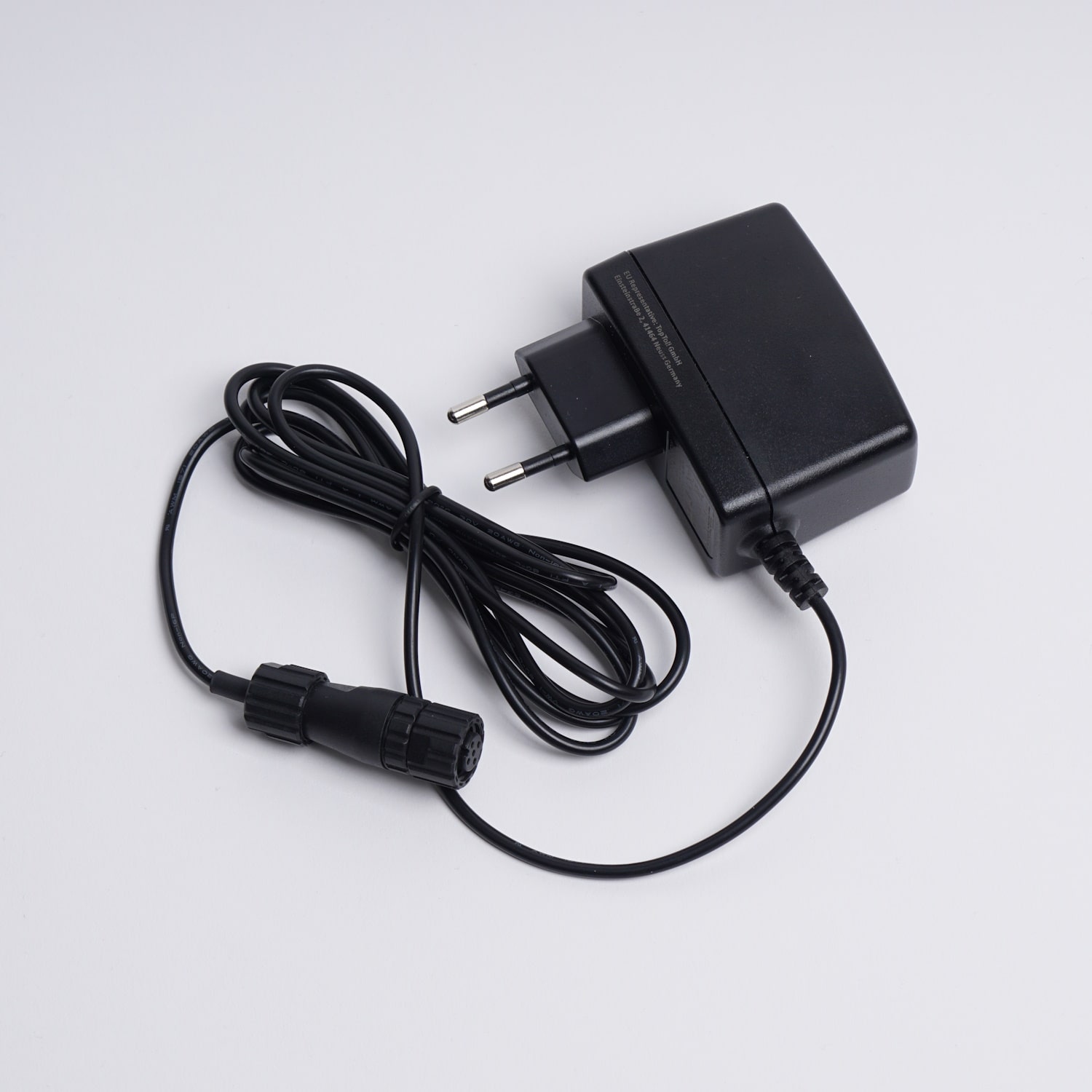

About the grid power charger Grid power is one of the most reliable ways to power your equipment, which is why Reporter uses the power grid to operate and charge its internal battery. This 220V grid power supply is fitted with a plastic M12 connector to guarantee smooth connection with your Reporter's power port. Don't forget to add this item to your cart when purchasing your very own Reporter! FAQ Are there alternative charging options? A solar panel is an alternative option to charge your Reporter when grid power is not available in your location. You can also charge through DIN rail. Read more about how Reporter is powered. Is this grid power supply included with every Reporter? No, the power charger has to be purchased separately from the Reporter sensor module. Do I still need a power charger if I own a solar panel? Yes, it is recommended to purchase a grid power supply option to allow you to manually charge your Reporter in case of extreme and prolonged periods of low light conditions.

Power your Reporter through DIN rail Sometimes neither grid power nor a solar panel are compatible with your remote monitoring project. In such cases, a DIN rail power supply can be a solution to your problem. This power module converts 9-36VDC to 15V, making it a perfect match to power your Reporter sensor device. The charging module comes with a 2m open end to M12 cable to easily connect to your Reporter's charging port. Physical properties   Input 9-36VDC Output 15V Weight 195g Height 89mm Width 51mm Depth 58mm Cable length 2m Cable type Open end wire to female M12

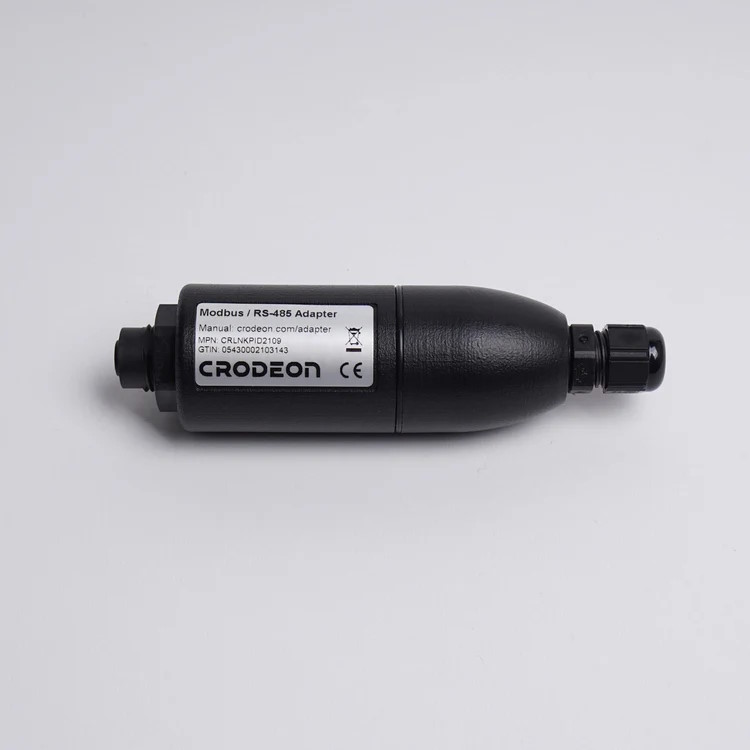

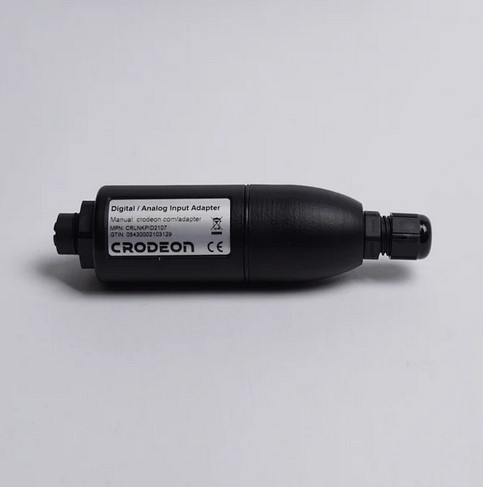

Sensor compatibility made easy We designed Reporter to make your remote monitoring projects easy and plug & play, but not all sensors can directly be plugged into our sensor device. An extra step is needed, a module that can translate the raw measurement data into something Reporter can easily understand. This interpretive module is our Sensor Adapter. We speak your sensor's language Different sensors communicate to the data logger (Reporter) in different languages, which is why you need to use the right Sensor Adapter to make sure data is interpreted correctly. When you buy a sensor from our shop we send you the right adapter to ensure smooth data transmission. If you want to connect your own sensor to one of our adapters you can check what kind of data output it comes with and what Sensor Adapter fits its language. Get started with your measuring project Follow the next steps to quickly get started with your Sensor Adapter. Claim your Reporter on the Crodeon Dashboard. Connect your power supply to the utmost right connector. Connect your sensor(s) to your adapter(s) according to their respective connection diagrams. Connect your sensor(s) to the remaining four connectors for sensors. Select the right sensor template on the Crodeon Dashboard. Now you're ready to view your live data! Let's have a look! General specifications Weight 50 grams Dimensions 123 mm x 32 mm Environmental protection class IP65 Temperature range -10°C to +40°C Cable length 50 cm with female to male M12 connectors Digital / Analog Input Adapter The Digital / Analog Input Adapter reads dry contacts, reed contacts, open collector, open drain, NPN, PNP, and other digital signals. These signals are either converted into binary values such as 0-1, on/off, or open/closed, or counted as pulses. It also reads analog signals such as 0-10V and 0-5V.

Sensor compatibility made easy We designed Reporter to make your remote monitoring projects easy and plug & play, but not all sensors can directly be plugged into our sensor device. An extra step is needed, a module that can translate the raw measurement data into something Reporter can easily understand. This interpretive module is our Sensor Adapter. We speak your sensor's language Different sensors communicate to the data logger (Reporter) in different languages, which is why you need to use the right Sensor Adapter to make sure data is interpreted correctly. When you buy a sensor from our shop we send you the right adapter to ensure smooth data transmission. If you want to connect your own sensor to one of our adapters you can check what kind of data output it comes with and what Sensor Adapter fits its language. Get started with your measuring project Follow the next steps to quickly get started with your Sensor Adapter. Claim your Reporter on the Crodeon Dashboard. Connect your power supply to the utmost right connector. Connect your sensor(s) to your adapter(s) according to their respective connection diagrams. Connect your sensor(s) to the remaining four connectors for sensors. Select the right sensor template on the Crodeon Dashboard. Now you're ready to view your live data! Let's have a look! General specifications Weight 50 grams Dimensions 123 mm x 32 mm Environmental protection class IP65 Temperature range -10°C to +40°C Cable length 50 cm with female to male M12 connectors Modbus / RS-485 Adapter This adapter reads Modbus and RS-485 signals.

Sensor compatibility made easy We designed Reporter to make your remote monitoring projects easy and plug & play, but not all sensors can directly be plugged into our sensor device. An extra step is needed, a module that can translate the raw measurement data into something Reporter can easily understand. This interpretive module is our Sensor Adapter. We speak your sensor's language Different sensors communicate to the data logger (Reporter) in different languages, which is why you need to use the right Sensor Adapter to make sure data is interpreted correctly. When you buy a sensor from our shop we send you the right adapter to ensure smooth data transmission. If you want to connect your own sensor to one of our adapters you can check what kind of data output it comes with and what Sensor Adapter fits its language. Get started with your measuring project Follow the next steps to quickly get started with your Sensor Adapter. Claim your Reporter on the Crodeon Dashboard. Connect your power supply to the utmost right connector. Connect your sensor(s) to your adapter(s) according to their respective connection diagrams. Connect your sensor(s) to the remaining four connectors for sensors. Select the right sensor template on the Crodeon Dashboard. Now you're ready to view your live data! Let's have a look! General specifications Weight 50 grams Dimensions 123 mm x 32 mm Environmental protection class IP65 Temperature range -10°C to +40°C Cable length 50 cm with female to male M12 connectors UART / I2C Adapter This adapter reads UART and I2C signals.

Product info Power your Reporter by the sun! Every Crodeon Reporter has solar charging technology built-in. This small and sturdy solar panel is all you need to keep your Reporter's battery charged when there's no grid power available.  This 10W monocristalline solar panel by Sunstore (UK) is equipped with a PUR cable of 2m length and a die-cast zinc M12 connector for plug and play compatibility with any Crodeon Reporter. The panel comes equipped with aluminum mounting brackets for easy installation. Installation The solar panel can be installed in different ways. Installation at an angle of 45° is better, but not mandatory. Two hours of sun a day is generally sufficient to maintain the battery level of your Reporter. The Reporter has been developed to use electricity as economically as possible. The measurement interval you set does have an impact on the power consumption. At 30 seconds, the Reporter will consume more power than at an interval of 10 minutes. The number of connected sensors also has an impact on the power consumption. If your Reporter is not getting enough power, you may want to consider a different solar panel placement. You can monitor the battery level via the Crodeon Dashboard. If the Reporter switches itself off due to an empty battery, this will be reported by SMS. Physical properties Weight 1330 g Height 405 mm Width 250 mm Depth 20 mm Cable length 2 m
