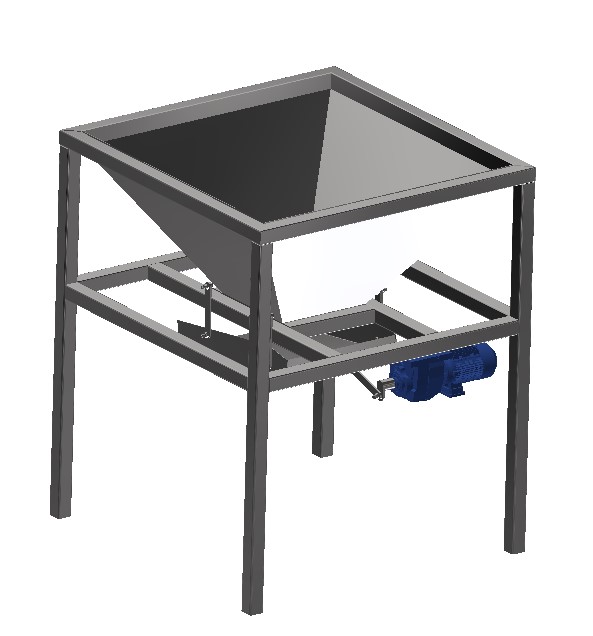

Acceptance hopper for soft bulk materials
€8,165.00*
Bulk material: fruits, roots, soft parts of plantsFunnel for arrangement above a conveyor beltwith adjustable electrical dosing devicefor an even product flowMaterial: painted steelProduct touching parts in stainless steelDimensions: 1700x1700x2000mm

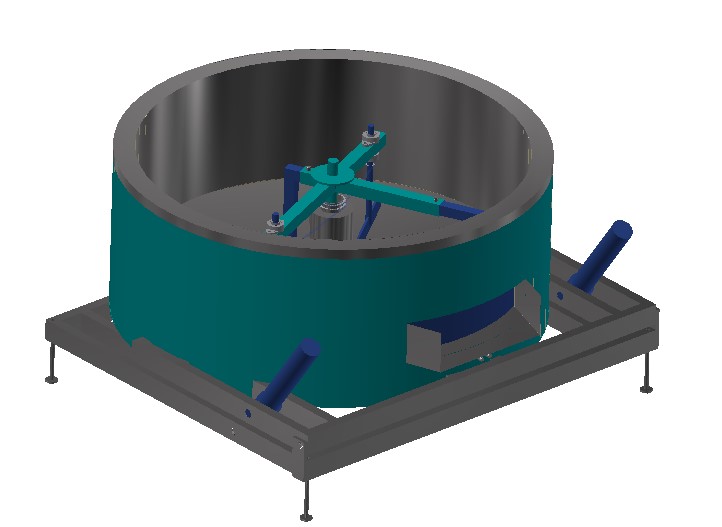

Automatic pan for Garri, 1800 mm
€16,680.00*
Pan with side lip 300 mmBottom and side wall insulatedfixed and rotating agitatorsIntermediate floor filled with oil for eventemperature in the panHeating coil in the oil for energy supply fromexternal energy sourcesautomatic temperature control with control valveautomatic emptying by tilting the panwith hydraulic cylindersDimension:Ladle inside 1800 mmFrame 2000x2200mmMaterial painted steelproduct touching parts in stainless steel
Feed pellet spiral FSP 127 length up to 24 m
€1,434.50*
Complete set Ø 127 mm with motor 1.1 kW and controlmaximum length with engine power 1.1 kw is 24 m!!! Please select length !!!
6 m are delivered as standard
Spirale FSP 127 bis 24 m:
X
Galvanized loading auger with hydraulic drive, type DS 150
€1,245.00*
Material galvanized steel
For mounting on wagons, fertilizer spreaders and seed drillsStandard:Hydraulic motor at the top, two hydraulic hoses 4.00 m with coupling, attachments for the trolley, perforated rail for adjusting the inclination and transport lock, inlet funnel, drain hose 1.00 m, cleaning opening, 3-way switch valveType DS 150Tube diameter 150 mmspout 150 mmLength 3.00 mOutput 35 t/h at 45° inclination
Intake hopper FSP 127
€87.20*
for spiral conveyor FSP 127with inspection openingMaterial galvanized steel
Motor protection switch 1.1 kW for FSP 127
€200.00*
Hand-O-Automatic switch for 1.1 kW- Connection for 2 signaling switches DOL 41R 230 V for empty and full signal operation

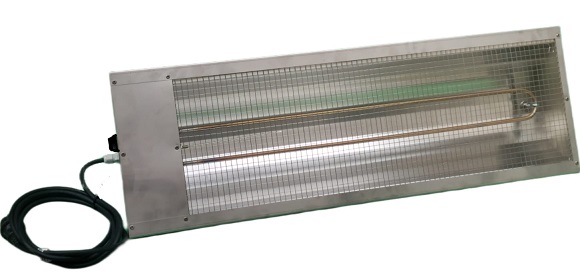

Radiant heater animal breeding 1400 watts 230 volts
€232.00*
TECHNICAL SPECIFICATIONS
Heat output 1400 watts (medium air)
with thermostat 50 - 300 °C, 1~230 volts
Material housing V2A insulated, reflector aluminium
870x290x180mm
with cable length 3 m and Schuko plug
suitable for rearing approx. 500 chicks
Ventilation spear / ventilation rocket ECO+ for grain storage
From
€1,099.00*
Application note: can be used for cooling grain can be used with suction to remove moisture depositsStandard with:Ventilation tube, fan, motor complete with motor protection switch and device connection socket CEE 16A 400V AC, handle, transition with thermometerTotal length approx. 3000 mmLength of ventilation pipe approx. 2200 mmTube diameter 150 mmMotor 1.5kWVoltage 400VAir performance 2500 m³/hPressure 1200 Pa
Belueftungsspeer:
Speer gesamt

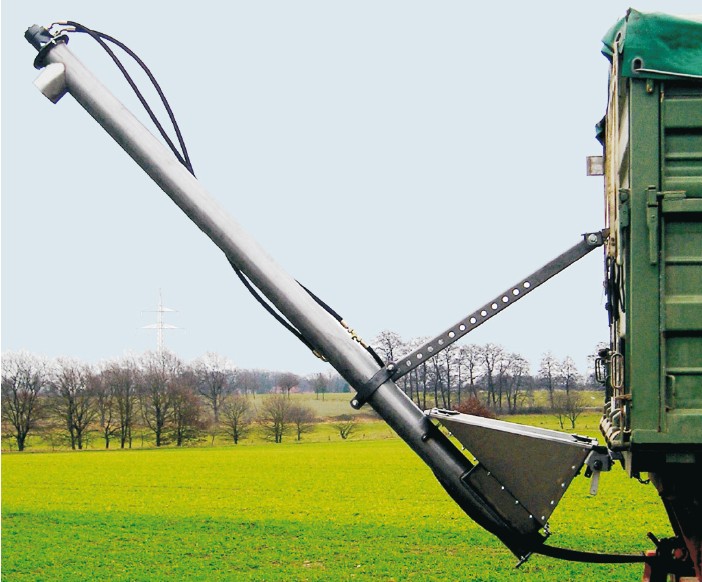

Stainless steel loading auger with hydraulic drive, type DS 150
€1,699.00*
Material stainless steel (suitable for fertilizer)
For mounting on wagons, fertilizer spreaders and seed drillsStandard:Hydraulic motor at the top, two hydraulic hoses 4.00 m with coupling, attachments for the trolley, perforated rail for adjusting the inclination and transport lock, inlet funnel, drain hose 1.00 m, cleaning opening, 3-way switch valveType DS 150Tube diameter 150 mmspout 150 mmLength 3.00 mOutput 35 t/h at 45° inclination
Ventilation duct K 30 for grain stores, length 0.86 m
€76.70*
Angle connector 90°Width 0.48mHeight 0.24 mMaterial galvanized
Tip
Ventilation duct K 30 for grain stores, length 0.86 m
€15.90*
Our semi-circular ventilation ducts are suitable for grain, rapeseed and potatoes.Overhead ventilation with cooling ducts is currently the most common way of introducing air. ThisThe form of ventilation is one of the most cost-effective variants to purchase.A full range of semicircular ducts made of galvanized perforated sheet steel,allows the complete construction of an effective ventilation system.The perforation is suitable for rapeseed, grain and potatoes.Our semicircular ventilation ducts, also known as K 30 cooling ducts, are designed for a bulk height of up to 12m.Advantages:• inexpensive solution for professional ventilation• easy to lay• many add-on parts for many bearing types• also a version for rapeseed, potatoes and wood chipsLength 0.86 mWidth 0.48mHeight 0.24 mMaterial galvanizedLaying distanceFilling height / laying distance2.0m / 2.00m2.5m / 2.25m3.0m / 2.50m3.5m / 2.75m4.0m / 3.00m4.5m / 3.25m5.0m / 3.50m5.5m / 3.75m6.0m / 4.00m6.5m / 4.50m7.0m / 5.00m
