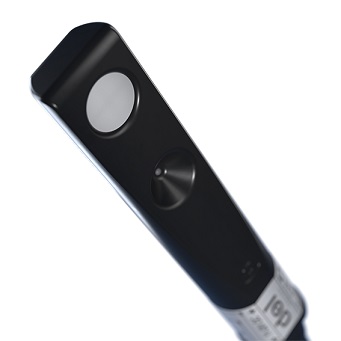

DOL 114 humidity and temperature sensor 0-10V M12
| Quantity | Unit price |
|---|---|
| To 2 |
€307.12*
|
| To 5 |
€276.41*
|
| To 9 |
€261.05*
|
| From 10 |
€245.70*
|
Available in 5 days, delivery time 1-3 days
Product number:
1142
Product information "DOL 114 humidity and temperature sensor 0-10V M12"
Manufacturer item no.: 140258
DOL 114 is a high-precision sensor for simultaneous measurement of relative humidity and temperature. It is used in livestock stables, but is also suitable for numerous industrial purposes. With the plug-in solution, the sensor can be removed and removed during cleaning. disinfection of the house. This increases the lifespan of the sensor. The DOL 114 comes with a protective cap. TECHNICAL SPECIFICATIONS Measuring range:
- Humidity: 0-100% RH Temperature:- 40℃-60℃
- Humidity: 17-100% RH* Temperature: 0-60°C*
Accuracy:
- Humidity: 2% RH (40-85%) ± 3% RH (10-95%) at 0-40°C
- Temperature: +10 °C - 40 °C: ± 0.5 °C ; - 30ºC – 60ºC: ± 1.5ºC
Output signal:
- Humidity: 0.1V/%RH
- Temperature: 0.1V/°C; 0°C at 4V
- Time constant T63: 20 s at 0.5 m/s
- Air speed :6 min at 0.5 m/s air speed
- Electrical connection: 11 – 30 V DC
- Current: 12mA no load / 55mA max load
- Load: > 500Ω - < 10MΩ
- Recommended load: ≥ 100 kΩ
- Output current: 20 mA per output (current limit)
- Output Impedance: <1Ω
- Operating and ambient temperature, storage: - 40 °C - 60 °C
- IP classification: IP 67
- Cable with M12 connector
- Maximum cable length 100 m at 0.75 mm2 200 m at 1.50 mm2
| Manufacturer item no.: | 140258 |
|---|---|
| Output signal: | 0-10 V (M12) |
| Supply voltage: | 11 - 30 V DC |
| Sensor type: | Luftfeuchtigkeit, Temperatur |
| Messbereich: | -40 / +60 °C, 0-100 % |
