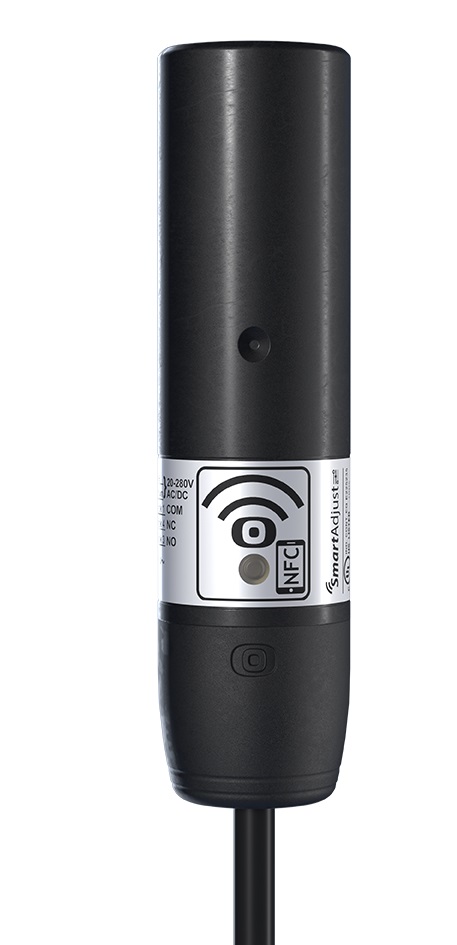

iDOL 44R-33 capacitive sensor 20-280V AC/DC

Manufacturer Item No.: 100642

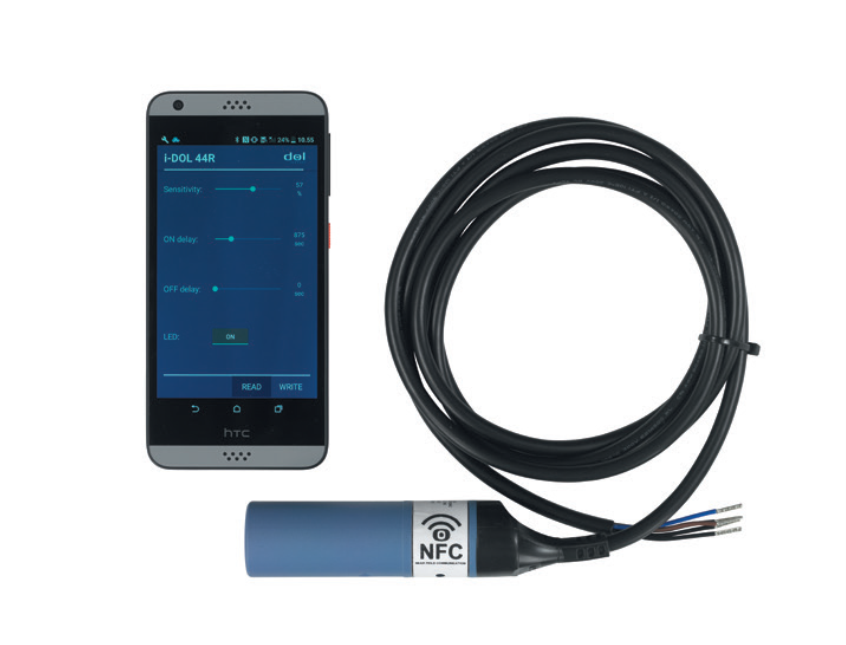

The iDOL 44R-33 series from dol-sensors consists of capacitive relay sensors and offers robust functionality and high user-friendliness. Based on the DOL 44R-33, the i-DOL 44R-33 allows setup, parameter adjustment and configuration via a wireless interface. In combination with the accompanying i-DOL app on your smartphone, the i-DOL 44R-33 is both easy to use and more flexible than any other capacitive feed sensor. Thanks to the i-DOL app, the user has more parameters available than a conventional sensor with two trimmers that have to be operated with a screwdriver. The result is a more flexible sensor that can be customized to the individual needs of the user. At the same time, the i-DOL 44R-33 sensor is easier to use and understand because the parameters are set up using a user-friendly and easy-to-understand interface. The result is a unique sensor with more features that is still easier to use. TECHNICAL SPECIFICATIONS

• Model:100642
• Supply voltage: 20-280VAC/DC
• Power consumption 1.5 VA or 16 VA with heating element
• Frequency: 47-63Hz
• Relay Switch Max Voltage: 250 volts AC
• Relay switch max current: Resistive load: 5A Inductive load: 2A
• Safety: Relay switch and supply voltage galvanically isolated Test voltage 4 kV AC *
• Activation distance: Adjustable 0 - 15 mm depending on the material. Discontinued by manufacturer for grain *
• Time delay: Adjustable time 0-3600 sec. SmartAdjust variant
• Degree of protection: IP69k. NEMA 1, 3, 4, 6, 12, 13
• Ambient temperature, operation: -20 °C - +70 °C (-4 °F - +158 °F)
• Ambient temperature, storage: -30 °C - +80 °C (-22 °F - +176 °F)

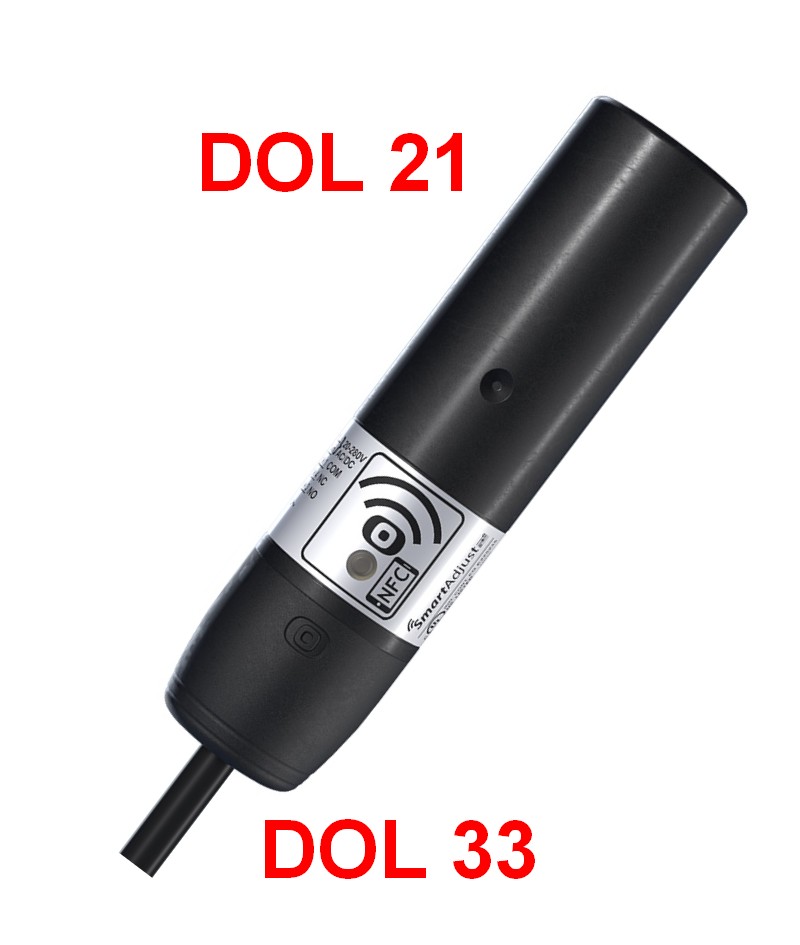

• iDOL 44R-33 has a tapered 32mm body.

Other variants available on request

Is compatible with the following products: VC11RN, VC11RT, VC12RN, VC12RT

Illustration similar
