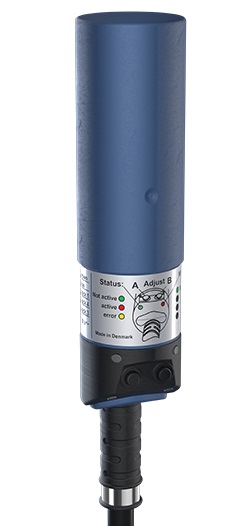

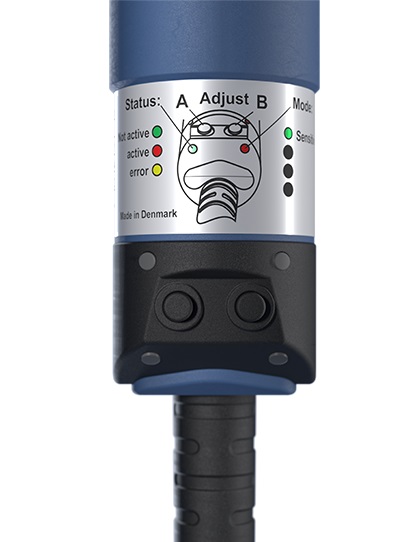

DOL 41R capacitive sensor, 90-250 V AC
| Quantity | Unit price |
|---|---|
| To 4 |
€96.37*
|
| To 9 |
€86.73*
|
| To 19 |
€81.91*
|
| From 20 |
€77.10*
|
Available, delivery time: 1-3 days
Manufacturer Art. No. 100671
DOL 41R a capacitive sensor is typically used as an empty, full and level indicator in tanks, silos and containers. The powerful built in relay means it can control many functions directly. DOL 41R Model 100671 has no time delay. The relay switches as soon as the sensor activates and remains in that position until the activation influence ceases.
TECHNICAL DATA
Model:100671
Supply voltage: 90 - 250 V AC
Frequency: 50 - 60 Hertz
Consumption: 2VA
Relay Switch Max Voltage: 250 VAC
Relay switch max. power AC: 5 A at cos φ = 1, 2 A at cos φ = 0.8, 0.35 A at cos φ = 0.4
Relay switch max. power DC: 5 A at 0 - 30 V DC
Safety: Relay switch and supply voltage are galvanically isolated. Test voltage 4 kV AC

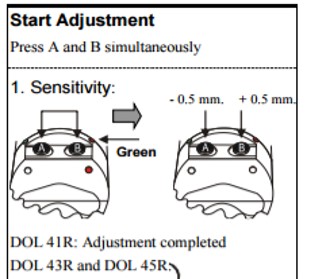

Activation distance: Adjustable 0 - 15 mm depending on the material. Factory setting for grain
Time Delay: Adjustable 0-240 min. Factory setting for 30 sec.
Protection class: IP67
Ambient temperature, operation: -20 °C to +70 °C / -4 °F to +158 °F
Ambient temperature storage: -30 °C to +85 °C / -22 °F to +185 °F
Smooth surface Ø30 mm
Another variant available:
DOL 41R capacitive sensor, 10-30 V AC/DC
| Manufacturer item no.: | 100671 |
|---|---|
| Supply voltage: | 90-250 V AC |
| Sensor type: | 5 Ader Relay NO/NC |
| Switching delay: | Keine |
| Surface & Ø: | Smooth Ø 30 mm |
