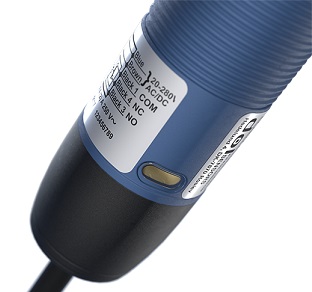

DOL 28RG capacitive sensor 20-280V AC/DC
| Quantity | Unit price |
|---|---|
| To 4 |
€122.98*
|
| To 9 |
€110.68*
|
| To 19 |
€104.53*
|
| From 20 |
€98.38*
|
Available in 5 days, delivery time 1-3 days
Product number:
1264
Product information "DOL 28RG capacitive sensor 20-280V AC/DC
"
The DOL 28R is a unique sensor that combines a 30mm feed sensor with an integrated light. The DOL 28R is suitable for feed pans in poultry production where the light ensures that the pans are noticed by the birds. This in turn ensures a stable feed supply. Compared to discrete lighting solutions, the DOL 28R is easy to install and can also be used in upgrades to existing feeding systems with an integrated lighting solution.
TECHNICAL SPECIFICATIONS
- Model: 100696
- Mains Voltage: 20-280V AC/DC
- Frequency: 47-63Hz
- Max. voltage of the relay switch: 250 volts AC
- Max. power of the relay switch: Resistive load: 4 A / Inductive load: 2 A
- Safety:Relay switch and mains voltage are galvanically isolated.
- Test voltage 4kV AC
- Activation distance: Adjustable between 0 and 20 mm depending on the material.
- Time Delay: Adjustable between 0 and 600 seconds
- Degree of protection: IP 69k. NEMA 1, 3, 4, 6, 12, 13
- Ambient temperature, operation: -20 to +70 °C (-4 to +158 °F)
- Ambient temperature, storage: -30 to +80 °C (-22 to +176 °F)
| Manufacturer item no.: | 100696 |
|---|---|
| Supply voltage: | 20-280 V AC/DC |
| Sensor type: | 5 Ader Relay NO/NC |
| Switching delay: | 0-600s Aus |
| Surface & Ø: | Thread M30 |
