DOL 27 CA-P-M30-NF-CA-SCR-B-2T
| Quantity | Unit price |
|---|---|
| To 4 |
€89.25*
|
| To 9 |
€80.33*
|
| To 19 |
€75.86*
|
| From 20 |
€71.40*
|
Available in 5 days, delivery time 1-3 days
Manufacturer Item No.:105301
DOL 27 is a capacitive sensor for detecting loose and solid materials. SCR output versions are available in 2-wire versions. The products are suitable together with contactors, relays, PLCs and similar in the agricultural and industrial sectors. DOL 27 is immune to EMI, short circuits and any overload. No more burned out sensors due to installation errors. Very low power consumption when switched off - allows the possibility for sensors to work in parallel on the same contactor. Unique control option cross worm systems. Protection class IP69k and NEMA 1/3/4/6/12/13.
TECHNICAL SPECIFICATIONS
- Model:105301
- Mains voltage (Ue): 20-280VAC / VDC
- Frequency (fe): 47-63Hz Max Current (Ie): 500mA RMS / mA DC
- Load Dip Current: < 2.5A @ 30ms A
- Direct connection to Ue (current >> 500 mA)
- without damaging the sensor: > 10 times Min.
- ON current (Im): < 10 (Ue = 20 - 90)mA RMS / mA DC; < 6 (Ue = 90 - 280) V
- OFF current (Ir): < 3 (Ue = 20 - 90)mA RMS / mA DC; < 1 (Ue = 90 - 280)mA RMS / mA DC
- Voltage drop, output ON (Ud): < 6 V RMS / V DC
- Detection speed: > 15 Hz
- Time delay OFF* (adjustable): 0.1 – 600 s
- Activation distance (Sn) (adjustable): 0 - 20 (0 - 0.79) mm (inches)
- Safe Activation Distance (Sa)*: 4 - 15 (0.16 - 0.59) mm (inches)
- Repeatability (R): 5%
- Hysteresis (H): 4 - 10%
- Temperature, operating: -20 - +70 (-4 - +158) °C (°F)
- Temperature, storage: -40 - +80 (-40 - +176) °C (°F)
- Degree of protection: IP69k (DIN 40050-9)
- NEMA 1, 3, 4, 6, 12, 13

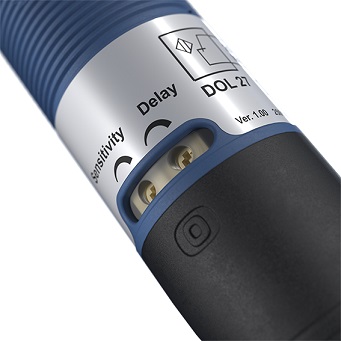

Illustration similar
| Manufacturer item no.: | 105301 |
|---|---|
| Supply voltage: | 20-280 V AC/DC |
| Sensor type: | 2 Ader SCR NC (B) |
| Switching delay: | 0-600s Aus |
| Surface & Ø: | Thread M30 |
